TFFDR02 | Temp | Duct w/Mtg Box | 18 in | 10k T2 | 2 Pt Cal Cert | Veris

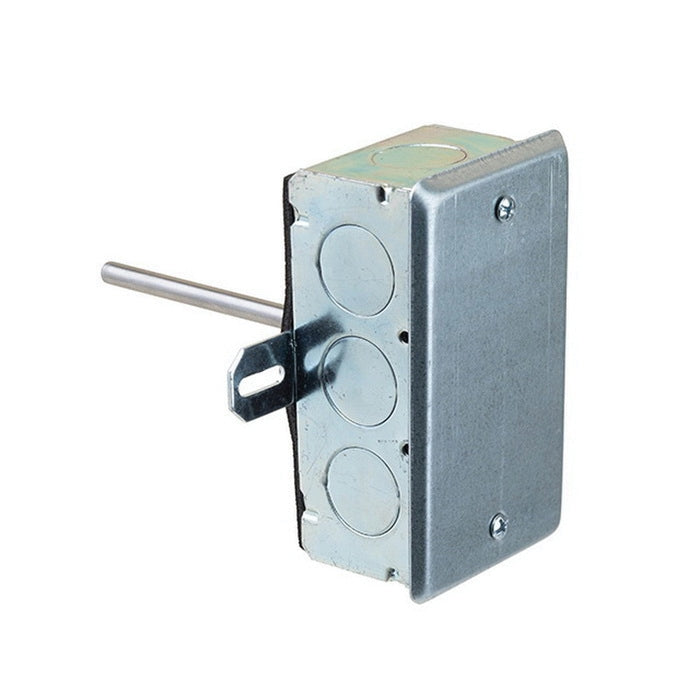

Stainless Steel Probe 18 in 10 kOhm T2 Thermistor NTC Temperature Sensor, 2-Point Calibration

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TFFDR02

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris TFFDR02 Documents

Datasheet Installation Guide More Info

Overview

Details for TFFDR02

Temp | Duct w/Mtg Box | 18 in | 10k T2 | 2 Pt Cal Cert

Duct-mount temperature sensors from Veris are pre-calibrated and housed in sturdy stainless steel probes. The devices are easy to install, durable and highly accurate.

Cost-effective, high accuracy RTDs available with or without a junction box
Durable - corrosion resistant stainless steel probe design
No calibration required
Duct with mounting box enclosure
Resistive output
2-point calibration validation
Not suitable for wet locations, for indoor use only

Specifications

Item Number	TFFDR02
Brand	Veris
Application Zone	Plant Room
Application	Duct
Brand	Veris
Dimension Depth	1.8" (44 mm)
Dimension Height	4.2" (102 mm)
Dimension Probe Diameter	0.25" (6 mm)
Dimension Probe Length	18" (45.7 cm)
Dimension Width	2.3" (58 mm)
Electrical Wiring Size	22 AWG (0.32 mm²)
Enclosure Material	Galvanized Steel
Measurement Type	Temperature
Model	TFFDR02
Mounting	Duct with Mounting Box
Operating Temperature	-13 - 221 °F (-25 - 105 °C)
Outputs	Resistive output
Product Certification	CE
Product Type	Sensor
Range	TF
Sensor Configuration	Duct
Sensor Length	18 inch
Sensor	Temperature
Temperature Calibration Certificate	2 pts
Temperature Measurement Accuracy	±1.8 °F (±1.0 °C)
Temperature Measurement Range	-58 - 302 °F (-50 - 150 °C)
Temperature Sensor Type	10k Ohm Type 2 Thermistor
Warranty	5 years
