TFEJR00 | Temp | Duct w/Mtg Box | 12" | 10k DALE | RTD | Veris

Stainless Steel Probe 12 in 10 kOhm Dale Thermistor NTC Temperature Sensor

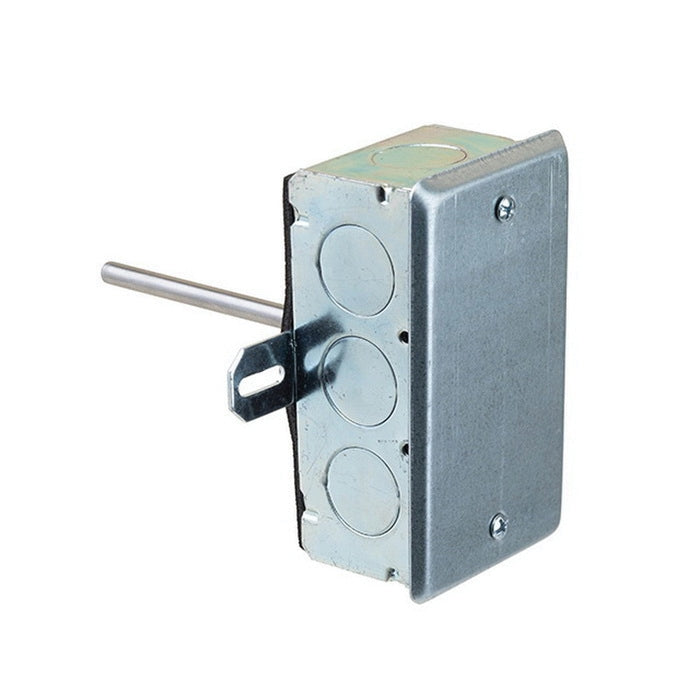

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TFEJR00

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris TFEJR00 Documents

Datasheet Installation Guide More Info

Overview

Details for TFEJR00

Temp | Duct w/Mtg Box | 12" | 10k DALE | RTD

Duct-mount temperature sensors from Veris are pre-calibrated and housed in sturdy stainless steel probes. The devices are easy to install, durable and highly accurate.

Cost-effective, high accuracy RTDs available with or without a junction box
Durable - corrosion resistant stainless steel probe design
No calibration required
Duct with mounting box enclosure
Resistive output
Not suitable for wet locations, for indoor use only

Specifications

Item Number	TFEJR00
Brand	Veris
Application Zone	Plant Room
Application	Duct
Brand	Veris
Dimension Depth	1.8" (44 mm)
Dimension Height	4.2" (102 mm)
Dimension Probe Diameter	0.25" (6 mm)
Dimension Probe Length	12" (30.5 cm)
Dimension Width	2.3" (58 mm)
Electrical Wiring Size	22 AWG (0.32 mm²)
Enclosure Material	Galvanized Steel
Measurement Type	Temperature
Model	TFEJR00
Mounting	Duct with Mounting Box
Operating Temperature	-13 - 221 °F (-25 - 105 °C)
Outputs	Resistive output
Product Certification	CE
Product Type	Sensor
Range	TF
Sensor Configuration	Duct
Sensor Length	12 inch
Sensor	Temperature
Temperature Calibration Certificate	None
Temperature Measurement Accuracy	±0.4 °F (±0.2 °C)
Temperature Measurement Range	-4 - 158 °F (-20 - 70 °C)
Temperature Sensor Type	10k Ohm Dale Thermistor
Warranty	5 years
