TFDHR00 | Temp | Duct w/Mtg Box | 8" | 10k T3 | Veris

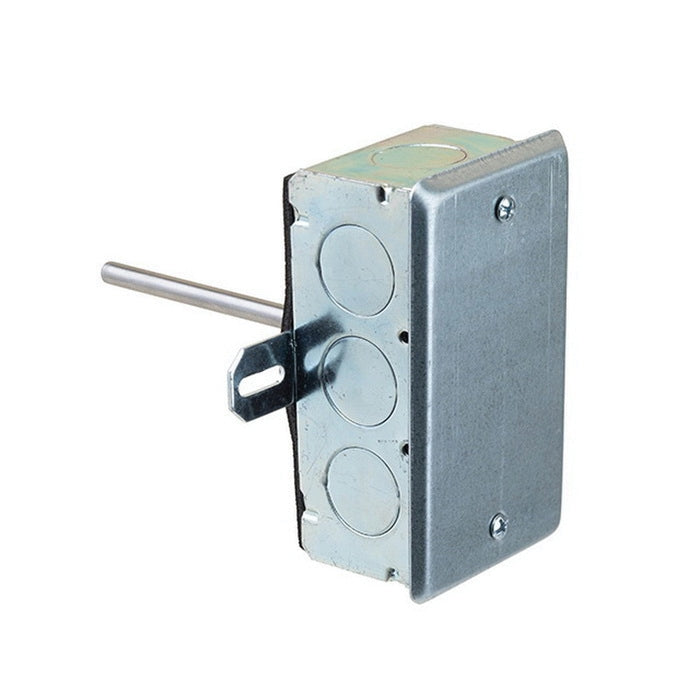

Stainless Steel Probe 8 in 10 kOhm T3 Thermistor NTC Temperature Sensor, Duct with Mounting Box Enclosure

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TFDHR00

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris TFDHR00 Documents

Datasheet Installation Guide More Info

Overview

Details for TFDHR00

Temp | Duct w/Mtg Box | 8" | 10k T3

Description

Veris’ duct mount temperature sensors are precalibrated and housed in sturdy stainless steel probes. The devices are easy to install, durable, and highly accurate.

Specifications

Item Number	TFDHR00
Brand	Veris
Application Zone	Plant Room
Application	Duct
Brand	Veris
Dimension Depth	1.8" (44 mm)
Dimension Height	4.2" (102 mm)
Dimension Probe Diameter	0.25" (6 mm)
Dimension Probe Length	8" (203 mm)
Dimension Width	2.3" (58 mm)
Electrical Wiring Size	22 AWG (0.32 mm²)
Enclosure Material	Galvanized Steel
Measurement Type	Temperature
Model	TFDHR00
Mounting	Duct with Mounting Box
Operating Temperature	-13 - 221 °F (-25 - 105 °C)
Outputs	Resistive output
Product Certification	CE
Product Type	Sensor
Range	TF
Sensor Configuration	Duct
Sensor Length	8 inch
Sensor	Temperature
Temperature Calibration Certificate	None
Temperature Measurement Accuracy	±0.4 °F (±0.2 °C)
Temperature Measurement Range	32 - 158 °F (0 - 70 °C)
Temperature Sensor Type	10k Ohm Type 3 Thermistor
Warranty	5 years
