TFCDR00 | Temp | Duct w/Mtg Box | 6In. | 10k Type 2 | Veris
Stainless Steel Probe 6 in 10 kOhm T2 Thermistor NTC Temperature Sensor, Duct with Mounting Box Enclosure

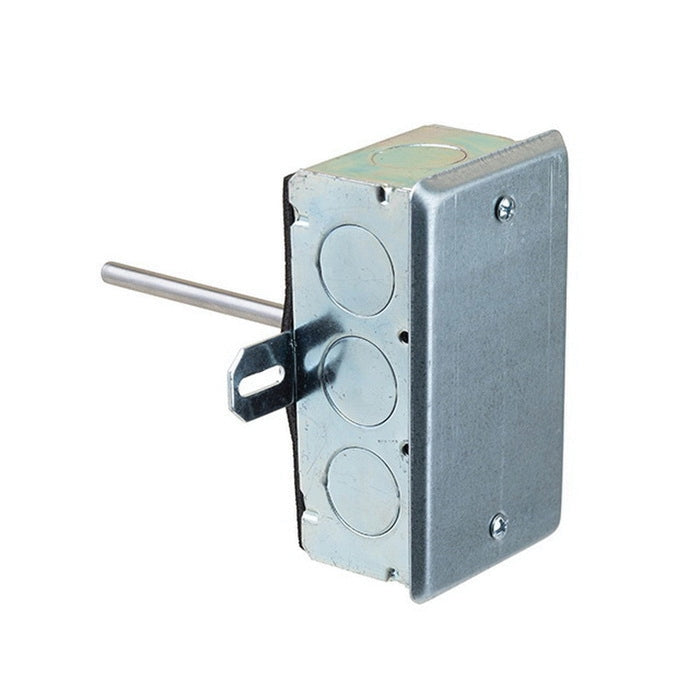

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TFCDR00
Overview Details for TFCDR00
Duct-mount temperature sensors from Veris are pre-calibrated and housed in sturdy stainless steel probes. The devices are easy to install, durable and highly accurate.
- Cost-effective, high accuracy RTDs available with or without a junction box
- Durable - corrosion resistant stainless steel probe design
- No calibration required
- Duct with mounting box enclosure
- Resistive output
- Not suitable for wet locations, for indoor use only
Specifications
Item Number | TFCDR00 |
Brand | Veris |
Application Zone | Plant Room |
Application | Duct |
Brand | Veris |
Dimension Depth | 1.8" (44 mm) |
Dimension Height | 4.2" (102 mm) |
Dimension Probe Diameter | 0.25" (6 mm) |
Dimension Probe Length | 6" (152 mm) |
Dimension Width | 2.3" (58 mm) |
Electrical Wiring Size | 22 AWG (0.32 mm²) |
Enclosure Material | Galvanized Steel |
Measurement Type | Temperature |
Model | TFCDR00 |
Mounting | Duct with Mounting Box |
Operating Temperature | -13 - 221 °F (-25 - 105 °C) |
Outputs | Resistive output |
Product Certification | CE |
Product Type | Sensor |
Range | TF |
Sensor Configuration | Duct |
Sensor Length | 6 inch |
Sensor | Temperature |
Temperature Calibration Certificate | None |
Temperature Measurement Accuracy | ±1.8 °F (±1.0 °C) |
Temperature Measurement Range | -58 - 302 °F (-50 - 150 °C) |
Temperature Sensor Type | 10k Ohm Type 2 Thermistor |
Warranty | 5 years |
