TFBKR00 | Temp | Duct w/Mtg Box | 4" | 10k w/11kS | RTD | Veris (OBSOLETE)

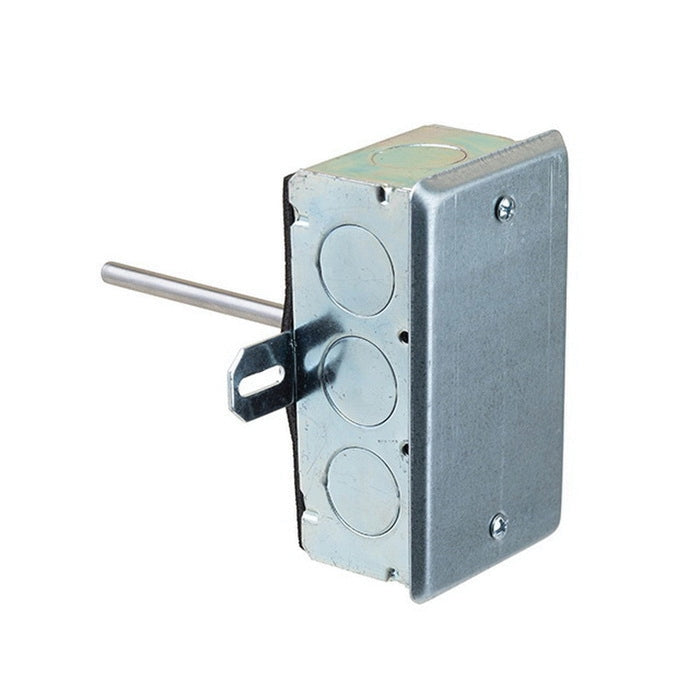

Stainless Steel Probe 4 in 10 kOhm with 11 kOhm Shunt Thermistor Temperature Sensor

Brand: VerisSKU: TFBKR00

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TFBKR00

Jump to: Overview & Specifications Reviews

Overview Details for TFBKR00

DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS

Duct-mount temperature sensors from Veris are pre-calibrated and housed in sturdy stainless steel probes. The devices are easy to install, durable and highly accurate.

Cost-effective, high accuracy RTDs available with or without a junction box
Durable - corrosion resistant stainless steel probe design
No calibration required
Duct with mounting box enclosure
Resistive output
Not suitable for wet locations, for indoor use only

Duct-mount temperature sensors from Veris are pre-calibrated and housed in sturdy stainless steel probes. The devices are easy to install, durable and highly accurate.

Cost-effective, high accuracy RTDs available with or without a junction box
Durable - corrosion resistant stainless steel probe design
No calibration required
Duct with mounting box enclosure
Resistive output
Not suitable for wet locations, for indoor use only

Specifications

Item Number	TFBKR00
Brand	Veris
Application Zone	Plant Room
Application	Duct
Brand	Veris
Dimension Depth	1.8" (44 mm)
Dimension Height	4.2" (102 mm)
Dimension Probe Diameter	0.25" (6 mm)
Dimension Probe Length	4" (102 mm)
Dimension Width	2.3" (58 mm)
Electrical Wiring Size	22 AWG (0.32 mm²)
Enclosure Material	Galvanized Steel
Measurement Type	Temperature
Model	TFBKR00
Mounting	Duct with Mounting Box
Operating Temperature	-13 - 221 °F (-25 - 105 °C)
Outputs	Resistive output
Product Certification	CE
Product Type	Sensor
Range	TF
Sensor Configuration	Duct
Sensor Length	4 inch
Sensor	Temperature
Temperature Calibration Certificate	None
Temperature Measurement Accuracy	±0.4 °F (±0.2 °C)
Temperature Measurement Range	32 - 158 °F (0 - 70 °C)
Temperature Sensor Type	10k Ohm Thermistor w/11k Ohm Shunt
Warranty	5 years
