TEP11 | Temp Econ Wall | Linitemp | Override | 1C | Veris (OBSOLETE)

Cloud White ABS Plastic Linitemp Temperature Sensor, Override Setpoint

Brand: VerisSKU: TEP11

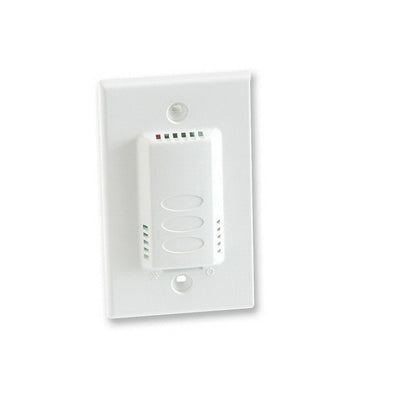

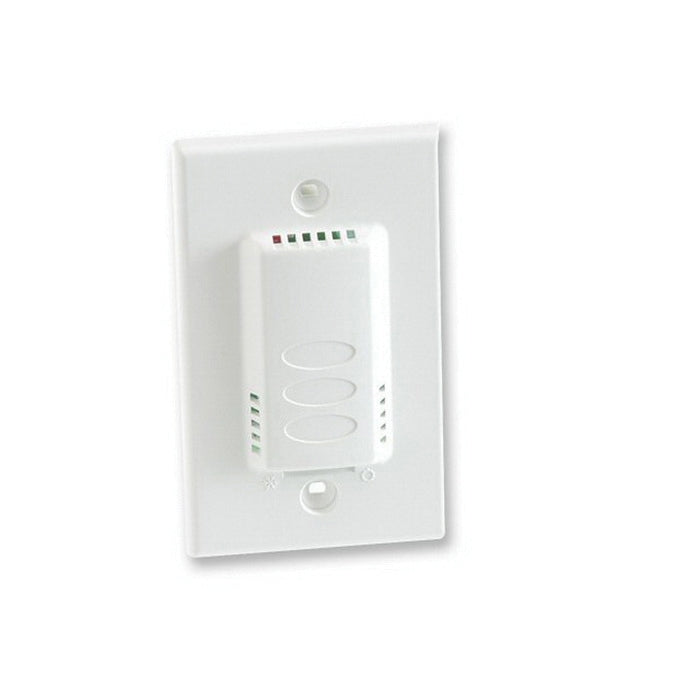

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TEP11

Jump to: Overview & Specifications Reviews

Overview Details for TEP11

DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS

These wall mounted temperature sensors feature a discreet appearance combined with high accuracy and reliability. Aesthetically pleasing in any interior environment.

Wall mount - low-profile housing
Quick installation - reduced downtime for deployment
Override setpoint
1-point calibration validation

Specifications

Item Number	TEP11
Brand	Veris
Application Zone	Living Space
Application	Wall
Brand	Veris
Dimension Depth	0.5" (13 mm)
Dimension Height	3.2" (82 mm)
Dimension Width	2.8" (72 mm)
Display Type	None
Electrical Wiring Size	22 AWG (0.32 mm²)
Enclosure Material	ABS Plastic
Measurement Type	Temperature
Model	TEP11
Mounting	Wall
Operating Temperature	-13 - 221 °F (-25 - 105 °C)
Outputs	Resistive output
Override	Yes
Product Certification	CE
Product Type	Sensor
Range	TE
Sensor Configuration	Room sensor with override
Sensor	Temperature
Setpoint	No
Temperature Calibration Certificate	1 pt
Temperature Measurement Range	-13 - 221 °F (-25 - 105 °C)
Temperature Sensor Type	10 mV/C Linitemp
Warranty	5 years
