TEM50 | Temp Economy Wall | 20k NTC | 10k Set Pt w/override | Veris

Cloud White ABS Plastic 20 kOhm Thermistor NTC Temperature Sensor, 10 kOhm Setpoint with Push Button Override

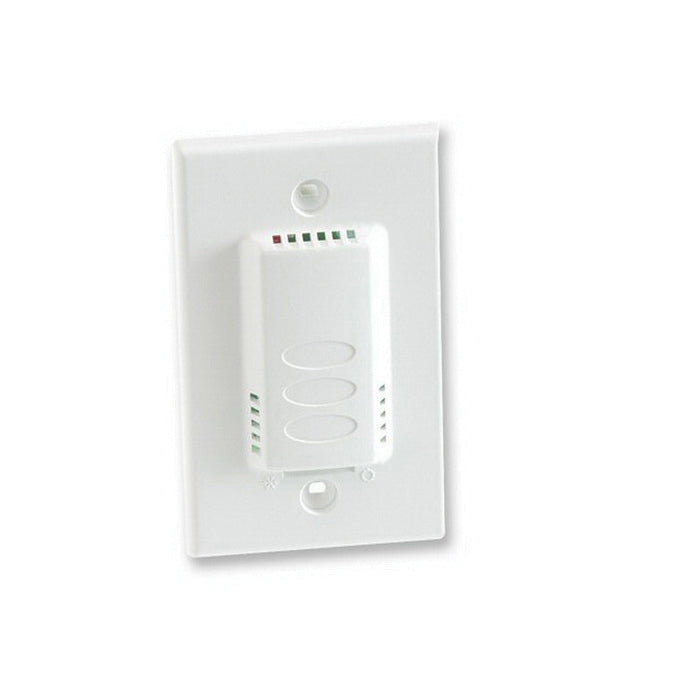

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TEM50

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris TEM50 Documents

Datasheet Installation Guide More Info

Overview

Details for TEM50

Temp Economy Wall | 20k NTC | 10k Set Pt w/override

These wall mounted temperature sensors feature a discreet appearance combined with high accuracy and reliability. Aesthetically pleasing in any interior environment.

Wall mount - low-profile housing
Quick installation - reduced downtime for deployment
10 kOhm setpoint with push button override

Specifications

Item Number	TEM50
Brand	Veris
Application Zone	Living Space
Application	Wall
Brand	Veris
Dimension Depth	0.5" (13 mm)
Dimension Height	3.2" (82 mm)
Dimension Width	2.8" (72 mm)
Display Type	None
Electrical Wiring Size	22 AWG (0.32 mm²)
Enclosure Material	ABS Plastic
Measurement Type	Temperature
Model	TEM50
Mounting	Wall
Operating Temperature	-13 - 221 °F (-25 - 105 °C)
Outputs	Resistive output
Override	Yes
Product Certification	CE
Product Type	Sensor
Range	TE
Sensor Configuration	Room sensor with setpoint and override
Sensor	Temperature
Setpoint	Yes
Temperature Calibration Certificate	None
Temperature Sensor Type	20k Ohm NTC Thermistor
Warranty	5 years
