TEK10 | Temp Economy Wall | 10k w/11kS | Override | Veris

Cloud White ABS Plastic 10 kOhm with 11 kOhm Shunt Thermistor Temperature Sensor, Push Button Override

Veris | TEK10

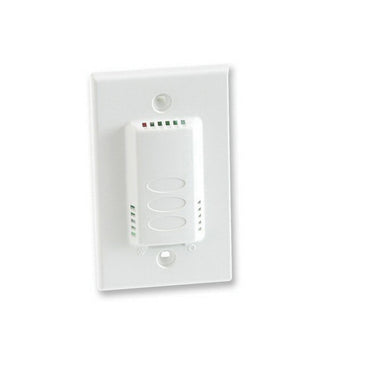

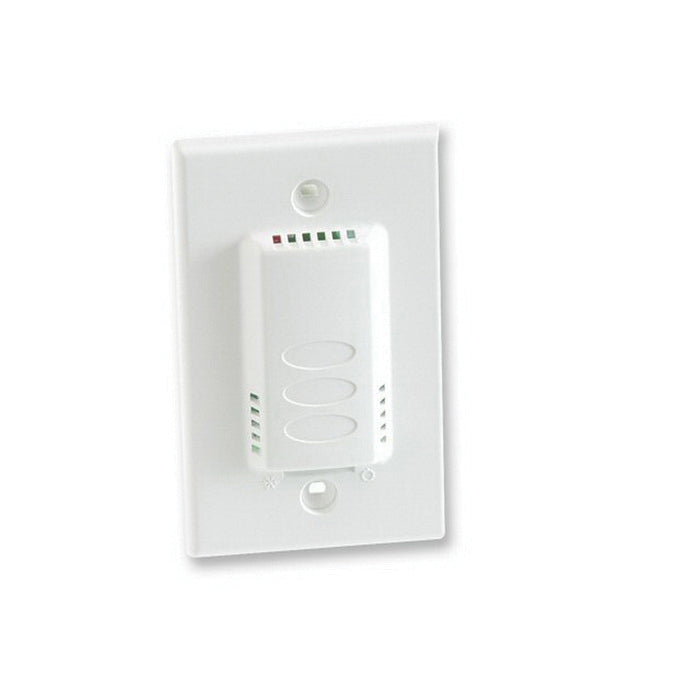

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TEK10

Documents and manuals

Veris TEK10 Documents

Overview

Details for TEK10

Temp Economy Wall | 10k w/11kS | Override

Description

These wall mounted temperature sensors feature a discreet appearance combined with high accuracy and reliability. Aesthetically pleasing in any interior environment. Flexible mounting options include flush and single-gang for ease of installation. TW TE To compute Linitemp Temperature mV reading/10 - 273.15 = Temperature in °C TABLE OF STANDARD RTD AN

Specifications

Item Number TEK10
Brand Veris
Application Zone Living Space
Application Wall
Brand Veris
Dimension Depth 0.5" (13 mm)
Dimension Height 3.2" (82 mm)
Dimension Width 2.8" (72 mm)
Display Type None
Electrical Wiring Size 22 AWG (0.32 mm²)
Enclosure Material ABS Plastic
Measurement Type Temperature
Model TEK10
Mounting Wall
Operating Temperature -13 - 221 °F (-25 - 105 °C)
Outputs Resistive output
Override Yes
Product Certification CE
Product Type Sensor
Range TE
Sensor Configuration Room sensor with override
Sensor Temperature
Setpoint No
Temperature Calibration Certificate None
Temperature Measurement Accuracy ±0.4 °F (±0.2 °C)
Temperature Measurement Range 32 - 158 °F (0 - 70 °C)
Temperature Sensor Type 10k Ohm Thermistor w/11k Ohm Shunt
Warranty 5 years
