TEI00 | Temp Economy Wall,1k | Veris

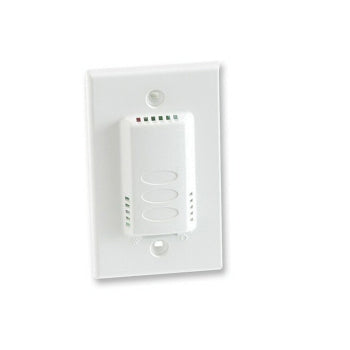

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TEI00

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris TEI00 Documents

Datasheet Installation Guide More Info

Overview

Details for TEI00

These wall mounted temperature sensors feature a discreet appearance combined with high accuracy and reliability. Aesthetically pleasing in any interior environment.

Wall mount - low-profile housing
Quick installation - reduced downtime for deployment
10 kOhm setpoint with push button override
Assembled in USA

Specifications

Item Number	TEI00
Brand	Veris
Application Zone	Living Space
Application	Wall
Brand	Veris
Dimension Depth	0.5" (13 mm)
Dimension Height	3.2" (82 mm)
Dimension Width	2.8" (72 mm)
Display Type	None
Electrical Wiring Size	22 AWG (0.32 mm²)
Enclosure Material	ABS Plastic
Measurement Type	Temperature
Model	TEH50U
Mounting	Wall
Operating Temperature	-13 - 221 °F (-25 - 105 °C)
Outputs	Resistive output
Override	Yes
Product Certification	CE
Product Type	Sensor
Range	TE
Setpoint	Yes
Temperature Calibration Certificate	None
Temperature Measurement Accuracy	±0.4 °F (±0.2 °C)
Temperature Measurement Range	32 - 158 °F (0 - 70 °C)
Temperature Sensor Type	10k Ohm Type 3 Thermistor
Warranty	5 years
