TEH50 | Temp Economy Wall | 10k T3 | 10k Set Pt w/override | Veris

Cloud White ABS Plastic 10 kOhm T3 Thermistor NTC Temperature Sensor, 10 kOhm Setpoint with Override

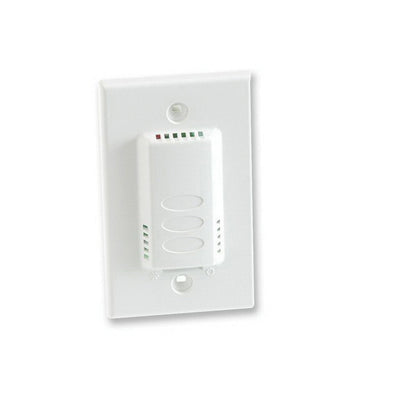

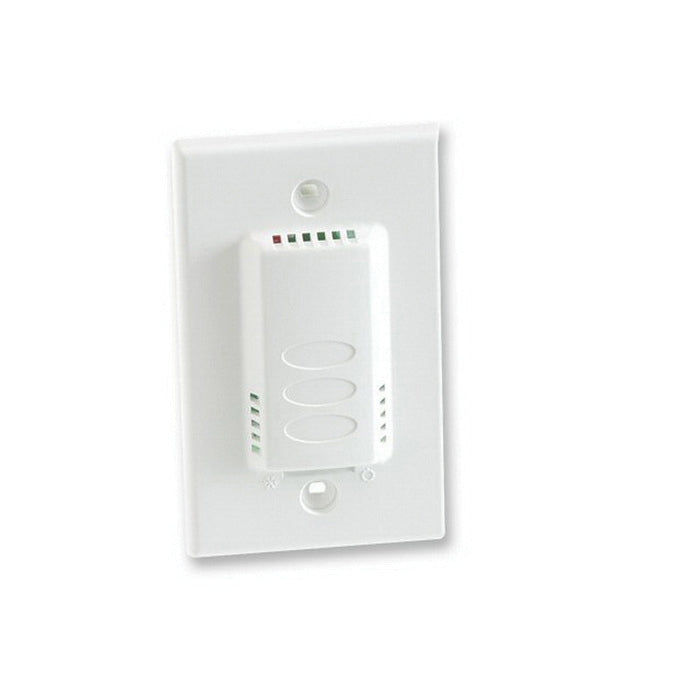

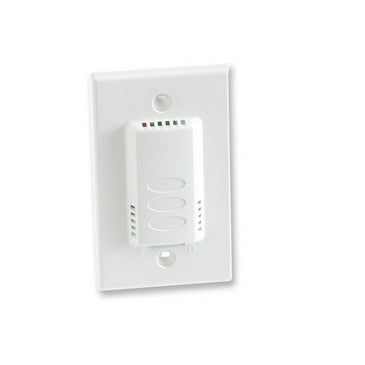

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TEH50

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris TEH50 Documents

Datasheet Installation Guide More Info

Overview

Details for TEH50

Temp Economy Wall | 10k T3 | 10k Set Pt w/override

These wall mounted temperature sensors feature a discreet appearance combined with high accuracy and reliability. Aesthetically pleasing in any interior environment.

Wall mount - low-profile housing
Quick installation - reduced downtime for deployment
10 kOhm setpoint with push button override

Specifications

Item Number	TEH50
Brand	Veris
Application Zone	Living Space
Application	Wall
Brand	Veris
Dimension Depth	0.5" (13 mm)
Dimension Height	3.2" (82 mm)
Dimension Width	2.8" (72 mm)
Display Type	None
Electrical Wiring Size	22 AWG (0.32 mm²)
Enclosure Material	ABS Plastic
Measurement Type	Temperature
Model	TEH50
Mounting	Wall
Operating Temperature	-13 - 221 °F (-25 - 105 °C)
Outputs	Resistive output
Override	Yes
Product Certification	CE
Product Type	Sensor
Range	TE
Sensor Configuration	Room sensor with setpoint and override
Sensor	Temperature
Setpoint	Yes
Temperature Calibration Certificate	None
Temperature Measurement Accuracy	±0.4 °F (±0.2 °C)
Temperature Measurement Range	32 - 158 °F (0 - 70 °C)
Temperature Sensor Type	10k Ohm Type 3 Thermistor
Warranty	5 years
