TED40 | Temp Economy Wall | 10k T2 | 1k Set Pt w/override | Veris (OBSOLETE)

Cloud White ABS Plastic 10 kOhm T2 Thermistor NTC Temperature Sensor, 1 kOhm Setpoint with Push Button Override

Brand: VerisSKU: TED40

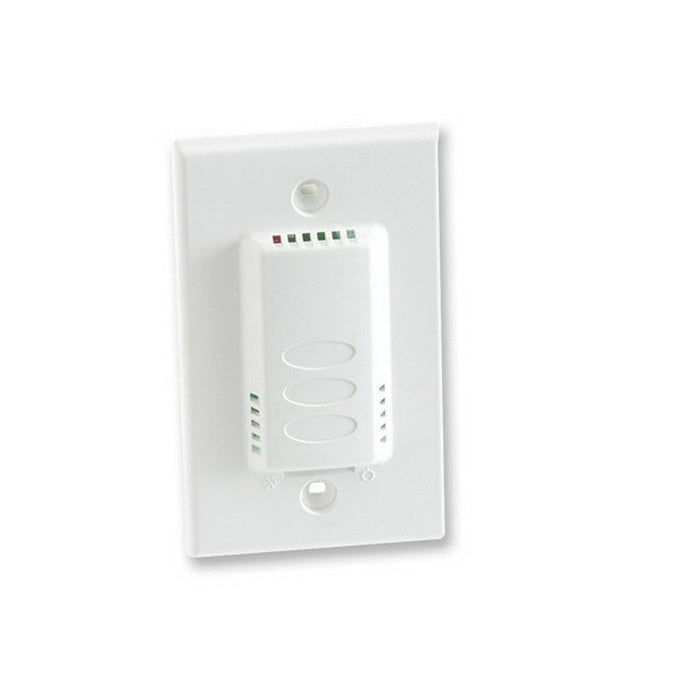

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TED40

Jump to: Overview & Specifications Reviews

Overview Details for TED40

DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS

These wall mounted temperature sensors feature a discreet appearance combined with high accuracy and reliability. Aesthetically pleasing in any interior environment.

Wall mount - low-profile housing
Quick installation - reduced downtime for deployment
1 kOhm setpoint with Push button override

Specifications

Item Number	TED40
Brand	Veris
Application Zone	Living Space
Application	Wall
Brand	Veris
Dimension Depth	0.5" (13 mm)
Dimension Height	3.2" (82 mm)
Dimension Width	2.8" (72 mm)
Display Type	None
Electrical Wiring Size	22 AWG (0.32 mm²)
Enclosure Material	ABS Plastic
Measurement Type	Temperature
Model	TED40
Mounting	Wall
Operating Temperature	-13 - 221 °F (-25 - 105 °C)
Outputs	Resistive output
Override	Yes
Product Certification	CE
Product Type	Sensor
Range	TE
Sensor Configuration	Room sensor with setpoint and override
Sensor	Temperature
Setpoint	Yes
Temperature Calibration Certificate	None
Temperature Measurement Accuracy	±1.8 °F (±1.0 °C)
Temperature Measurement Range	-58 - 302 °F (-50 - 150 °C)
Temperature Sensor Type	10k Ohm Type 2 Thermistor
Warranty	5 years
