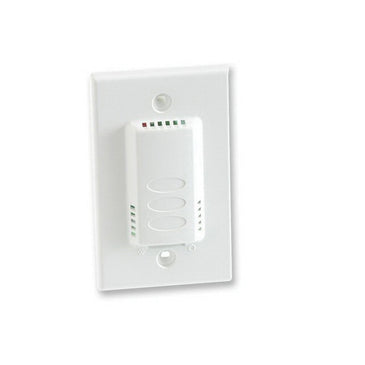

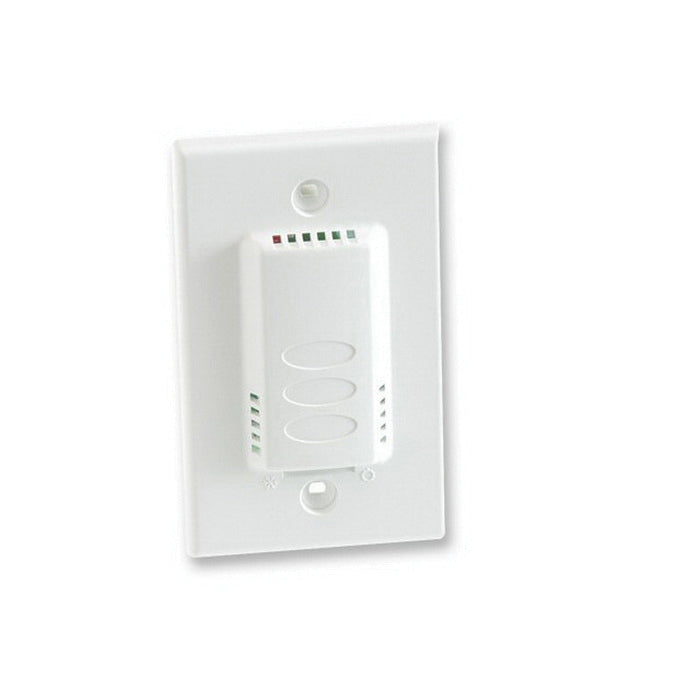

TEC20 | Temp Economy Wall | 1k Pt | 1k Set Pt | Veris

Cloud White ABS Plastic 1 kOhm Platinum RTD PTC Temperature Sensor, 1 kOhm Setpoint

Brand: VerisSKU: TEC20

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TEC20

Jump to: Overview & Specifications Reviews

Overview Details for TEC20

These wall mounted temperature sensors feature a discreet appearance combined with high accuracy and reliability. Aesthetically pleasing in any interior environment.

Wall mount - low-profile housing
Quick installation - reduced downtime for deployment
1 kOhm setpoint

Specifications

Item Number	TEC20
Brand	Veris
Application Zone	Living Space
Application	Wall
Brand	Veris
Dimension Depth	0.5" (13 mm)
Dimension Height	3.2" (82 mm)
Dimension Width	2.8" (72 mm)
Display Type	None
Electrical Wiring Size	22 AWG (0.32 mm²)
Enclosure Material	ABS Plastic
Measurement Type	Temperature
Model	TEC20
Mounting	Wall
Operating Temperature	-13 - 221 °F (-25 - 105 °C)
Outputs	Resistive output
Override	No
Product Certification	CE
Product Type	Sensor
Range	TE
Sensor Configuration	Room sensor with setpoint
Sensor	Temperature
Setpoint	Yes
Temperature Calibration Certificate	None
Temperature Measurement Accuracy	±0.6 °F (±0.3 °C)
Temperature Measurement Range	32 - 122 °F (0 - 50 °C)
Temperature Sensor Type	1k Ohm Platinum RTD
Warranty	5 years
