TEC00 | Temp Economy Wall | 1k Pt | Veris

Cloud White ABS Plastic 1 kOhm Platinum RTD PTC Temperature Sensor

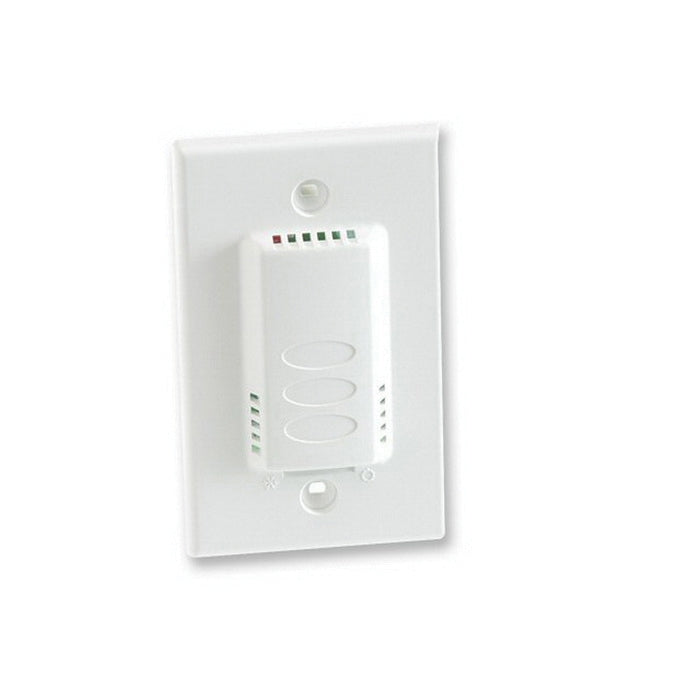

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TEC00

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris TEC00 Documents

Datasheet Installation Guide More Info

Overview

Details for TEC00

Temp Economy Wall | 1k Pt

Description

These wall mounted temperature sensors feature a discreet appearance combined with high accuracy and reliability. Aesthetically pleasing in any interior environment. Flexible mounting options include flush and single-gang for ease of installation.

Specifications

Item Number	TEC00
Brand	Veris
Application Zone	Living Space
Application	Wall
Brand	Veris
Dimension Depth	0.5" (13 mm)
Dimension Height	3.2" (82 mm)
Dimension Width	2.8" (72 mm)
Display Type	None
Electrical Wiring Size	22 AWG (0.32 mm²)
Enclosure Material	ABS Plastic
Measurement Type	Temperature
Model	TEC00
Mounting	Wall
Operating Temperature	-13 - 221 °F (-25 - 105 °C)
Outputs	Resistive output
Override	No
Product Certification	CE
Product Type	Sensor
Range	TE
Sensor Configuration	Room Only
Sensor	Temperature
Setpoint	No
Temperature Calibration Certificate	None
Temperature Measurement Accuracy	±0.6 °F (±0.3 °C)
Temperature Measurement Range	32 - 122 °F (0 - 50 °C)
Temperature Sensor Type	1k Ohm Platinum RTD
Warranty	5 years
