TEB00 | Temp Economy Wall | 100R Pt | Veris

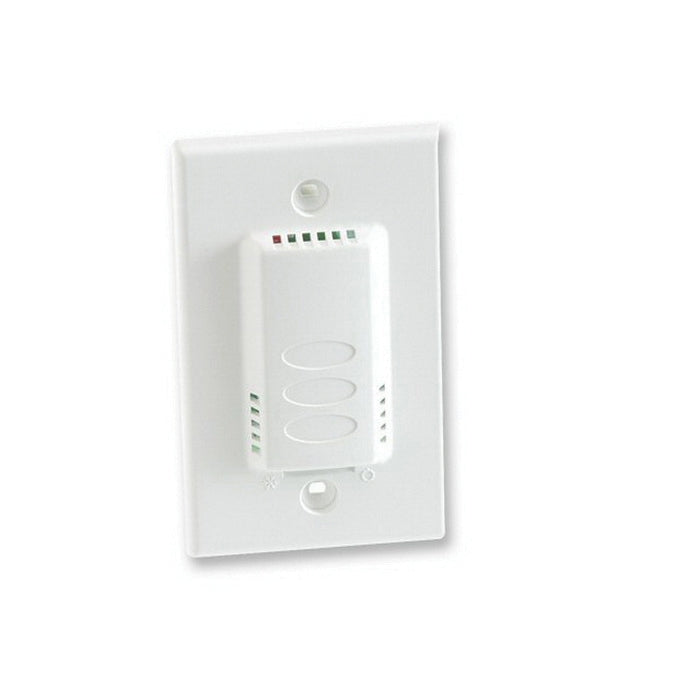

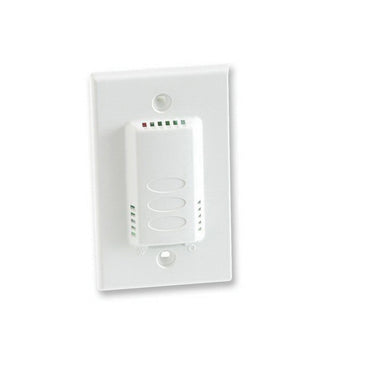

Cloud White ABS Plastic 100 Ohm Platinum RTD PTC Temperature Sensor

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TEB00

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris TEB00 Documents

Datasheet Installation Guide More Info

Overview

Details for TEB00

Temp Economy Wall | 100R Pt

These wall mounted temperature sensors feature a discreet appearance combined with high accuracy and reliability. Aesthetically pleasing in any interior environment.

Wall mount - low-profile housing
Quick installation - reduced downtime for deployment

Specifications

Item Number	TEB00
Brand	Veris
Application Zone	Living Space
Application	Wall
Brand	Veris
Dimension Depth	0.5" (13 mm)
Dimension Height	3.2" (82 mm)
Dimension Width	2.8" (72 mm)
Display Type	None
Electrical Wiring Size	22 AWG (0.32 mm²)
Enclosure Material	ABS Plastic
Measurement Type	Temperature
Model	TEB00
Mounting	Wall
Operating Temperature	-13 - 221 °F (-25 - 105 °C)
Outputs	Resistive output
Override	No
Product Certification	CE
Product Type	Sensor
Range	TE
Sensor Configuration	Room Only
Sensor	Temperature
Setpoint	No
Temperature Calibration Certificate	None
Temperature Measurement Accuracy	±0.6 °F (±0.3 °C)
Temperature Measurement Range	32 - 122 °F (0 - 50 °C)
Temperature Sensor Type	100 Ohm Platinum RTD
Warranty	5 years
