Documents: TDEDR00

Datasheet More Info

TDEDR00 | Temp | Duct | 12" | 10k T2 | Veris

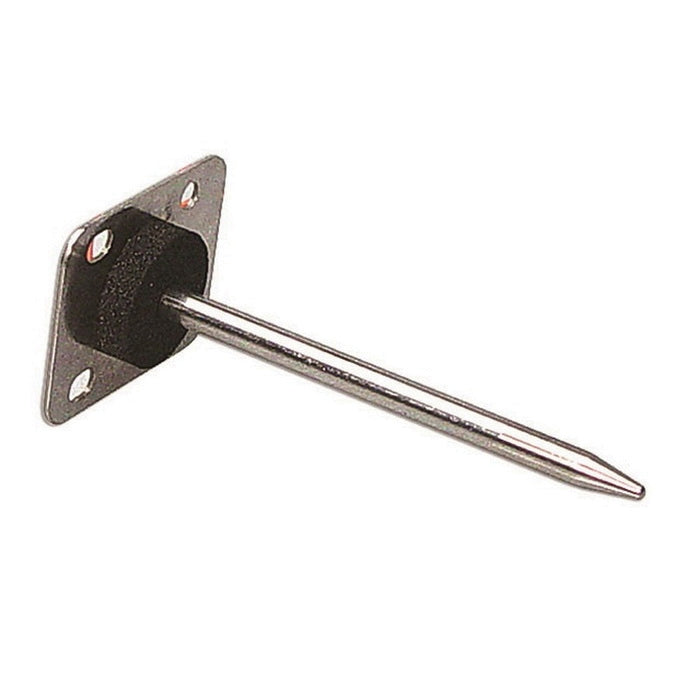

Stainless Steel Probe 12 in 10 kOhm T2 Thermistor NTC Temperature Sensor, Duct Enclosure

Brand: VerisSKU: TDEDR00

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TDEDR00

Jump to: Overview & Specifications Reviews

Overview Details for TDEDR00

Duct-mount temperature sensors from Veris are pre-calibrated and housed in sturdy stainless steel probes. The devices are easy to install, durable and highly accurate.

Cost-effective, high accuracy RTDs available with or without a junction box
Durable - corrosion resistant stainless steel probe design
No calibration required
Duct enclosure
Resistive output
Not suitable for wet locations, for indoor use only

Specifications

Item Number	TDEDR00
Brand	Veris
Application Zone	Plant Room
Application	Duct
Brand	Veris
Dimension Depth	0.5" (13 mm)
Dimension Height	2" (51 mm)
Dimension Probe Diameter	0.25" (6 mm)
Dimension Probe Length	12" (30.5 cm)
Dimension Width	1.5" (38 mm)
Electrical Wiring Size	22 AWG (0.32 mm²)
Enclosure Material	Stainless Steel
Measurement Type	Temperature
Model	TDEDR00
Mounting	Duct
Operating Temperature	-13 - 221 °F (-25 - 105 °C)
Outputs	Resistive output
Product Certification	CE
Product Type	Sensor
Range	TD
Sensor Configuration	Duct
Sensor Length	12 inch
Sensor	Temperature
Temperature Calibration Certificate	None
Temperature Measurement Accuracy	±1.8 °F (±1.0 °C)
Temperature Measurement Range	-58 - 302 °F (-50 - 150 °C)
Temperature Sensor Type	10k Ohm Type 2 Thermistor
Warranty	5 years
