Documents: TDDKR00

Datasheet More Info

TDDKR00 | Temp | Duct | 8" | 10k w/11kS | Veris

Stainless Steel Probe 8 in 10 kOhm with 11 kOhm Shunt Thermistor Temperature Sensor, Duct Enclosure

Brand: VerisSKU: TDDKR00

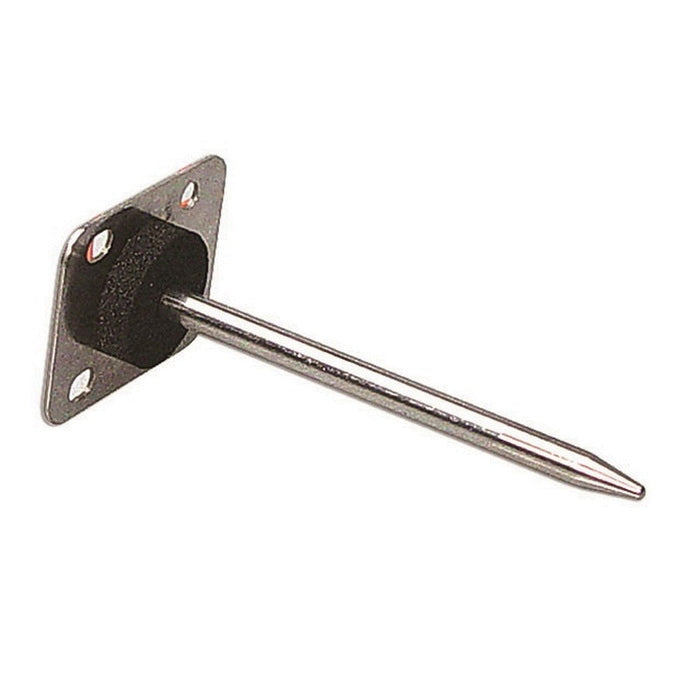

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TDDKR00

Jump to: Overview & Specifications Reviews

Overview Details for TDDKR00

Duct-mount temperature sensors from Veris are pre-calibrated and housed in sturdy stainless steel probes. The devices are easy to install, durable and highly accurate.

Cost-effective, high accuracy RTDs available with or without a junction box
Durable - corrosion resistant stainless steel probe design
No calibration required
Duct enclosure
Resistive output
Not suitable for wet locations, for indoor use only

Specifications

Item Number	TDDKR00
Brand	Veris
Application Zone	Plant Room
Application	Duct
Brand	Veris
Dimension Depth	0.5" (13 mm)
Dimension Height	2" (51 mm)
Dimension Probe Diameter	0.25" (6 mm)
Dimension Probe Length	8" (203 mm)
Dimension Width	1.5" (38 mm)
Electrical Wiring Size	22 AWG (0.32 mm²)
Enclosure Material	Stainless Steel
Measurement Type	Temperature
Model	TDDKR00
Mounting	Duct
Operating Temperature	-13 - 221 °F (-25 - 105 °C)
Outputs	Resistive output
Product Certification	CE
Product Type	Sensor
Range	TD
Sensor Configuration	Duct
Sensor Length	8 inch
Sensor	Temperature
Temperature Calibration Certificate	None
Temperature Measurement Accuracy	±0.4 °F (±0.2 °C)
Temperature Measurement Range	32 - 158 °F (0 - 70 °C)
Temperature Sensor Type	10k Ohm Thermistor w/11k Ohm Shunt
Warranty	5 years
