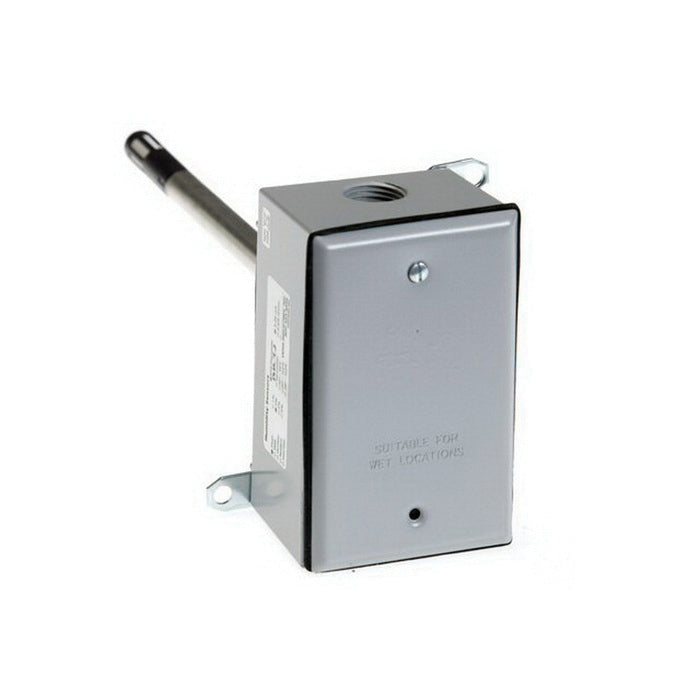

TDDAV22 | Temp | Duct | 8" | Xmtr | 5/10V | 32-122F | 2 Cert | Veris

Stainless Steel Probe 8-1/2 in 0 to 5/0 to 10 VDC Transmitter Temperature Sensor, 32 to 122 deg F, 2-Point Calibration

Brand: VerisSKU: TDDAV22
Veris | TDDAV22
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TDDAV22

Overview Details for TDDAV22

Duct-mount temperature sensors from Veris are pre-calibrated and housed in sturdy stainless steel probes. The devices are easy to install, durable and highly accurate.

  • Cost-effective, high accuracy RTDs available with or without a junction box
  • Durable - corrosion resistant stainless steel probe design
  • No calibration required
  • 2-point calibration validation
  • Not suitable for wet locations, for indoor use only
  • 3-wire temperature output
  • Solid-state, integrated circuit sensor

Specifications

Item Number TDDAV22
Brand Veris
Application Zone Plant Room
Application Duct
Brand Veris
Dimension Depth 2" (51 mm)
Dimension Height 4.3" (109 mm)
Dimension Probe Diameter 0.5" (13 mm)
Dimension Probe Length 8" (203 mm)
Dimension Width 2.7" (69 mm)
Electrical Wiring Size 22 AWG (0.32 mm²)
Enclosure Material Stainless Steel
Measurement Type Temperature
Model TDDAV22
Mounting Duct
Operating Temperature -13 - 221 °F (-25 - 105 °C)
Output Specifications 0 - 5 V | 0 - 10 V
Outputs Analog output
Product Certification CE
Product Type Sensor
Range TD
Sensor Configuration Duct
Sensor Length 8 inch
Sensor Temperature
Supply Voltage DC Range 5 - 30 VDC
Temperature Calibration Certificate 2 pts
Temperature Measurement Accuracy ±0.9 °F (±0.5 °C)
Temperature Measurement Range 32 - 122 °F (0 - 50 °C)
Temperature Sensor Type Temperature Transmitter
Warranty 5 years
