TDDAM10 | Temp | Duct | 8" | Xmtr | 4-20mA | -58 to 122F | Veris

Stainless Steel Probe 8-1/2 in 4 to 20 mA Transmitter Temperature Sensor, -40 to 122 deg F

Brand: VerisSKU: TDDAM10

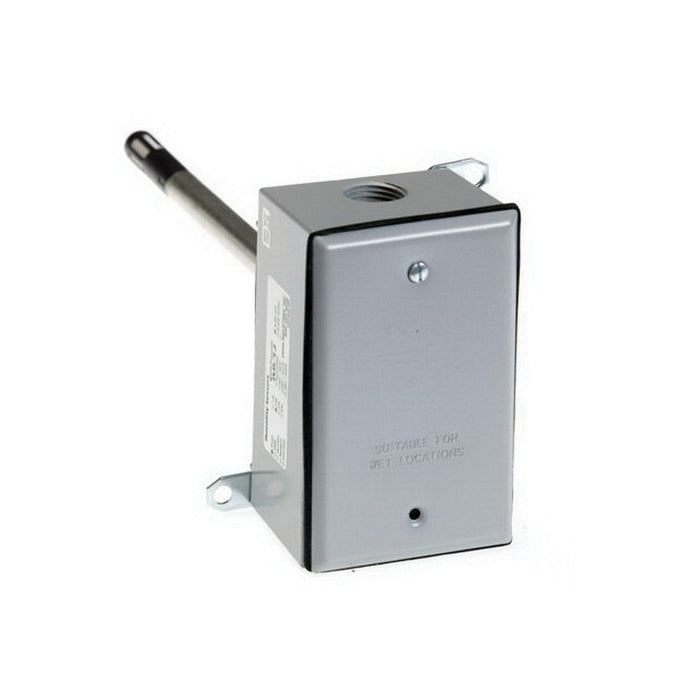

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TDDAM10

Jump to: Overview & Specifications Reviews

Overview Details for TDDAM10

Duct-mount temperature sensors from Veris are pre-calibrated and housed in sturdy stainless steel probes. The devices are easy to install, durable and highly accurate.

Cost-effective, high accuracy RTDs available with or without a junction box
Durable - corrosion resistant stainless steel probe design
No calibration required
Not suitable for wet locations, for indoor use only
2-wire, loop powered temperature output
Solid-state, integrated circuit sensor

Specifications

Item Number	TDDAM10
Brand	Veris
Application Zone	Plant Room
Application	Duct
Brand	Veris
Dimension Depth	2" (51 mm)
Dimension Height	4.3" (109 mm)
Dimension Probe Diameter	0.5" (13 mm)
Dimension Probe Length	8" (203 mm)
Dimension Width	2.7" (69 mm)
Electrical Wiring Size	22 AWG (0.32 mm²)
Enclosure Material	Stainless Steel
Measurement Type	Temperature
Model	TDDAM10
Mounting	Duct
Operating Temperature	-13 - 221 °F (-25 - 105 °C)
Output Specifications	4 - 20 mA
Outputs	Analog output
Product Certification	CE
Product Type	Sensor
Range	TD
Sensor Configuration	Duct
Sensor Length	8 inch
Sensor	Temperature
Supply Voltage DC Range	5 - 30 VDC
Temperature Calibration Certificate	None
Temperature Measurement Accuracy	±0.9 °F (±0.5 °C)
Temperature Measurement Range	-40 - 122 °F (-40 - 50 °C)
Temperature Sensor Type	Temperature Transmitter
Warranty	5 years
