TDCCR00 | Temp | Duct | 6 in | 1k RTD | Veris

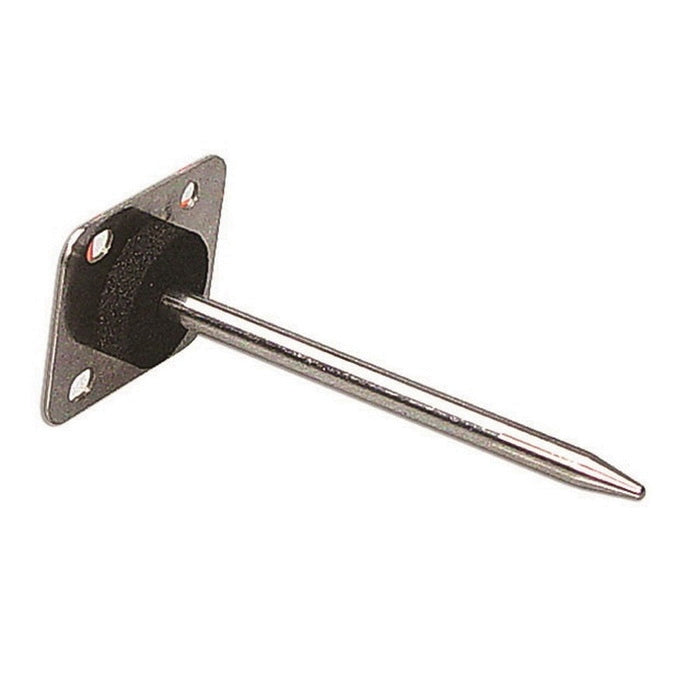

Stainless Steel Probe 6 in 1 kOhm Platinum RTD PTC Temperature Sensor, Duct Enclosure

Veris | TDCCR00
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TDCCR00

Documents and manuals

Veris TDCCR00 Documents

Overview

Details for TDCCR00

Temp | Duct | 6 in | 1k RTD

Duct-mount temperature sensors from Veris are pre-calibrated and housed in sturdy stainless steel probes. The devices are easy to install, durable and highly accurate.

  • Cost-effective, high accuracy RTDs available with or without a junction box
  • Durable - corrosion resistant stainless steel probe design
  • No calibration required
  • Duct enclosure
  • Resistive output
  • Not suitable for wet locations, for indoor use only

Specifications

Item Number TDCCR00
Brand Veris
Application Zone Plant Room
Application Duct
Brand Veris
Dimension Depth 0.5" (13 mm)
Dimension Height 2" (51 mm)
Dimension Probe Diameter 0.25" (6 mm)
Dimension Probe Length 6" (152 mm)
Dimension Width 1.5" (38 mm)
Electrical Wiring Size 22 AWG (0.32 mm²)
Enclosure Material Stainless Steel
Measurement Type Temperature
Model TDCCR00
Mounting Duct
Operating Temperature -13 - 221 °F (-25 - 105 °C)
Outputs Resistive output
Product Certification CE
Product Type Sensor
Range TD
Sensor Configuration Duct
Sensor Length 6 inch
Sensor Temperature
Temperature Calibration Certificate None
Temperature Measurement Accuracy ±0.6 °F (±0.3 °C)
Temperature Measurement Range 32 - 122 °F (0 - 50 °C)
Temperature Sensor Type 1k Ohm Platinum RTD
Warranty 5 years
