TDBKR00 | Temp | Duct | 4" | 10k w/11kS | Veris
Stainless Steel Probe 4 in 10 kOhm with 11 kOhm Shunt Thermistor Temperature Sensor, Duct Enclosure

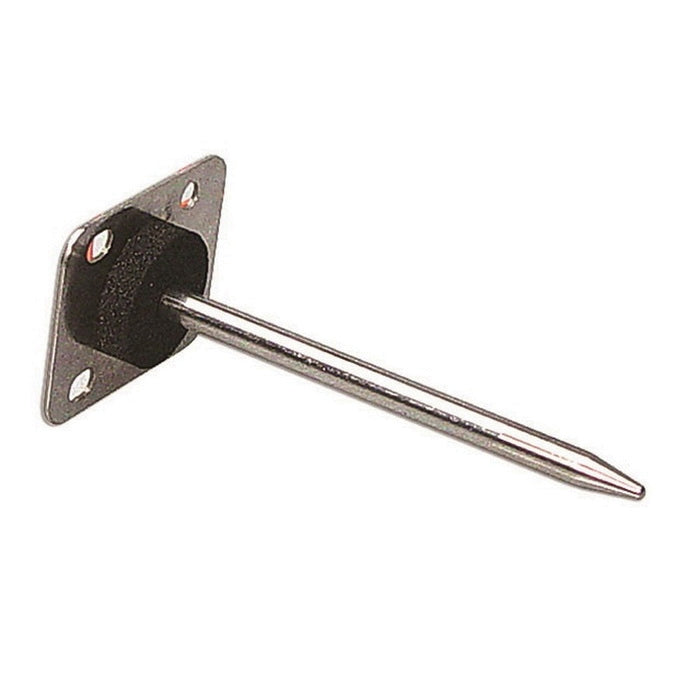

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TDBKR00
Overview Details for TDBKR00
Temp | Duct | 4" | 10k w/11kS
Duct-mount temperature sensors from Veris are pre-calibrated and housed in sturdy stainless steel probes. The devices are easy to install, durable and highly accurate.
- Cost-effective, high accuracy RTDs available with or without a junction box
- Durable - corrosion resistant stainless steel probe design
- No calibration required
- Duct enclosure
- Resistive output
- Not suitable for wet locations, for indoor use only
Specifications
Item Number | TDBKR00 |
Brand | Veris |
Application Zone | Plant Room |
Application | Duct |
Brand | Veris |
Dimension Depth | 0.5" (13 mm) |
Dimension Height | 2" (51 mm) |
Dimension Probe Diameter | 0.25" (6 mm) |
Dimension Probe Length | 4" (102 mm) |
Dimension Width | 1.5" (38 mm) |
Electrical Wiring Size | 22 AWG (0.32 mm²) |
Enclosure Material | Stainless Steel |
Measurement Type | Temperature |
Model | TDBKR00 |
Mounting | Duct |
Operating Temperature | -13 - 221 °F (-25 - 105 °C) |
Outputs | Resistive output |
Product Certification | CE |
Product Type | Sensor |
Range | TD |
Sensor Configuration | Duct |
Sensor Length | 4 inch |
Sensor | Temperature |
Temperature Calibration Certificate | None |
Temperature Measurement Accuracy | ±0.4 °F (±0.2 °C) |
Temperature Measurement Range | 32 - 158 °F (0 - 70 °C) |
Temperature Sensor Type | 10k Ohm Thermistor w/11k Ohm Shunt |
Warranty | 5 years |
