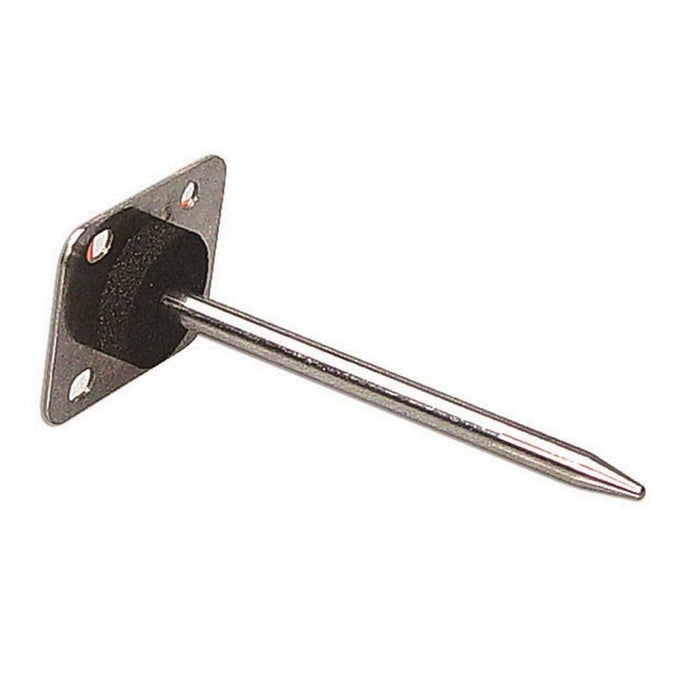

TDBIR00 | Temp | Duct | 4 in | 1k | Veris
Stainless Steel Probe 4 in 1 kOhm Balco (Nickel-Iron) RTD PTC Temperature Sensor
Documents and manuals
Veris TDBIR00 Documents
Overview
Details for TDBIR00
Temp | Duct | 4 in | 1k
Description
Veris’ duct mount temperature sensors are precalibrated and housed in sturdy stainless steel probes. The devices are easy to install, durable, and highly accurate.
Features
- Cost-effective, high accuracy thermistors or RTDs available with or without a junction box
- No calibration required
- Stainless steel probe
Specifications
Wiring 22 AWG; 2-wire: RTD/Thermistor, 4-20mA; 3-wire: Linitemp
TEMPERATURE TRANSMITTER OPTION
Input Power 4-20mA models: Loop powered Class 2, 12-30VDC only, 30mA max; 0-5/0-10V models: Class 2, 12-30VDC/24VAC, 50/60Hz, 15mA max
Temp Output TF, TG, TDDA: 2-wire, loop powered 4-20mA TDDA only: 3-wire, 0-5V/0-10VDC
Sensor Type TDDA: Solid-state, integrated circuit TF, TG: Thermistor/RTD
Transmitter Accuracy TDDA: ±0.5°C (±.9°F) typical** TF/TG: ±.1°C *
Ranges TDDA: Selectable 0° to 50°C (32° to 122°F) or -40° to 50°C (-40° to 122°F)** TF/TG: -25° to 105°C (available ranges; model number specifies exact range)
LINITEMP OPTION
Input Power 5 to 30VDC
Output 10mV/°C
Operating Temp -25° to 105°C (-13° to 221°F)
Calibration Error 1.5°C (2.7°F) typical; 2.5°C (4.5°F) max. at 25°C (77°F)***
Error over Temp 1.8°C (3.24°F) typical; 3.0°C (5.4°F) max. over 0° to
70°C (32° to 158°F) range
2.0°C (3.6°F) typical, 3.5°C (6.3°F) max. over -25° to
105°C (-13° to 221°F) range
RESISTIVE OPTION
Operating Temp -25° to 105°C (-13° to 221°F)
RTD/Thermistor See table below
Specifications
| Item Number | TDBIR00 |
| Brand | Veris |
| Application Zone | Plant Room |
| Application | Duct |
| Brand | Veris |
| Dimension Depth | 0.5" (13 mm) |
| Dimension Height | 2" (51 mm) |
| Dimension Probe Diameter | 0.25" (6 mm) |
| Dimension Probe Length | 4" (102 mm) |
| Dimension Width | 1.5" (38 mm) |
| Electrical Wiring Size | 22 AWG (0.32 mm²) |
| Enclosure Material | Stainless Steel |
| Measurement Type | Temperature |
| Model | TDBIR00 |
| Mounting | Duct |
| Operating Temperature | -13 - 221 °F (-25 - 105 °C) |
| Outputs | Resistive output |
| Product Certification | CE |
| Product Type | Sensor |
| Range | TD |
| Sensor Configuration | Duct |
| Sensor Length | 4 inch |
| Sensor | Temperature |
| Temperature Calibration Certificate | None |
| Temperature Measurement Accuracy | ±1.2 °F (±0.7 °C) @ 158 °F (70 °C) |
| Temperature Sensor Type | 1k Ohm BALCO (Nickel Iron) RTD |
| Warranty | 5 years |
