TCFH2 | Temp Ceiling | 18 in. | 10k T3 | 2 Point CAL | Veris

White ABS Plastic 18 in 10 kOhm T3 Thermistor NTC Temperature Sensor, 2-Point Calibration

Brand: VerisSKU: TCFH2

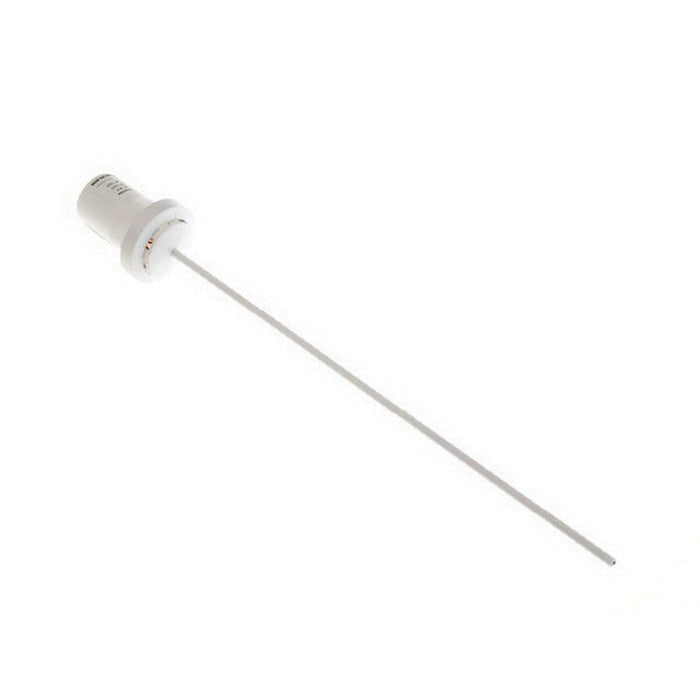

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TCFH2

Jump to: Overview & Specifications Reviews

Overview Details for TCFH2

TC sensors are ceiling-mounted in an unobtrusive housing. The easy to install units are ideal for office environments, as well as museums, galleries or any other open indoor setting. These sensors are highly accurate, reliable and come with a 5 years warranty.

Ceiling mount probe for more accurate readings, ideal for open office environments
Recessed press-fit sensor virtually disappears, great for museums and galleries
2-point calibration validation

Specifications

Item Number	TCFH2
Brand	Veris
Application Zone	Living Space
Application	Hospitals \| Labs \| Clean Rooms
Brand	Veris
Color	Cloud White
Dimension Depth	Installed: 0.6" (16 mm) \| Total: 2.7" (68 mm)
Dimension Height	2" (51 mm)
Dimension Probe Diameter	3/16" (4.8 mm)
Dimension Probe Length	18" (45.7 cm)
Dimension Width	2" (51 mm)
Electrical Wiring Size	22 AWG (0.32 mm²)
Enclosure Material	ABS Plastic
Measurement Type	Temperature
Model	TCFH2
Mounting	Ceiling
Operating Temperature	-13 - 221 °F (-25 - 105 °C)
Outputs	Resistive output
Product Type	Sensor
Range	TC
Sensor Configuration	Ceiling
Sensor	Temperature
Temperature Calibration Certificate	2 pts
Temperature Measurement Accuracy	±0.4 °F (±0.2 °C)
Temperature Measurement Range	32 - 158 °F (0 - 70 °C)
Temperature Sensor Type	10k Ohm Type 3 Thermistor
Warranty	5 years
