TCDM0 | Temp Ceiling | 8" | 20k NTC | Veris

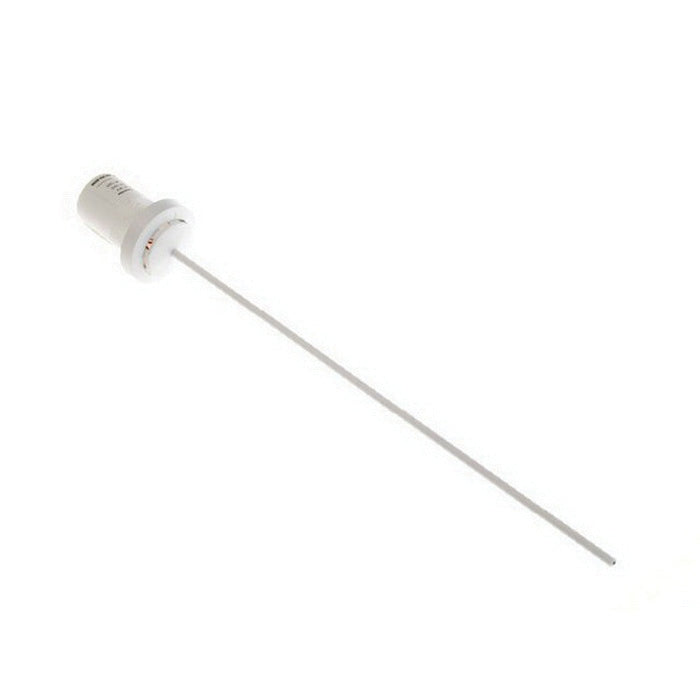

White ABS Plastic 8 in 20 kOhm Thermistor NTC Temperature Sensor

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TCDM0

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris TCDM0 Documents

Datasheet Installation Guide More Info

Overview

Details for TCDM0

Temp Ceiling | 8" | 20k NTC

TC sensors are ceiling-mounted in an unobtrusive housing. The easy to install units are ideal for office environments, as well as museums, galleries or any other open indoor setting. These sensors are highly accurate, reliable and come with a 5 years warranty.

Ceiling mount probe for more accurate readings, ideal for open office environments
Recessed press-fit sensor virtually disappears, great for museums and galleries

Specifications

Item Number	TCDM0
Brand	Veris
Application Zone	Living Space
Application	Hospitals \| Labs \| Clean Rooms
Brand	Veris
Color	Cloud White
Dimension Depth	Installed: 0.6" (16 mm) \| Total: 2.7" (68 mm)
Dimension Height	2" (51 mm)
Dimension Probe Diameter	3/16" (4.8 mm)
Dimension Probe Length	8" (203 mm)
Dimension Width	2" (51 mm)
Electrical Wiring Size	22 AWG (0.32 mm²)
Enclosure Material	ABS Plastic
Measurement Type	Temperature
Model	TCDM0
Mounting	Ceiling
Operating Temperature	-13 - 221 °F (-25 - 105 °C)
Outputs	Resistive output
Product Type	Sensor
Range	TC
Sensor Configuration	Ceiling
Sensor	Temperature
Temperature Calibration Certificate	None
Temperature Sensor Type	20k Ohm NTC Thermistor
Warranty	5 years
