Get Special Pricing!
TCDC0 | Temp Ceiling | 8" | 1k Pt | Veris

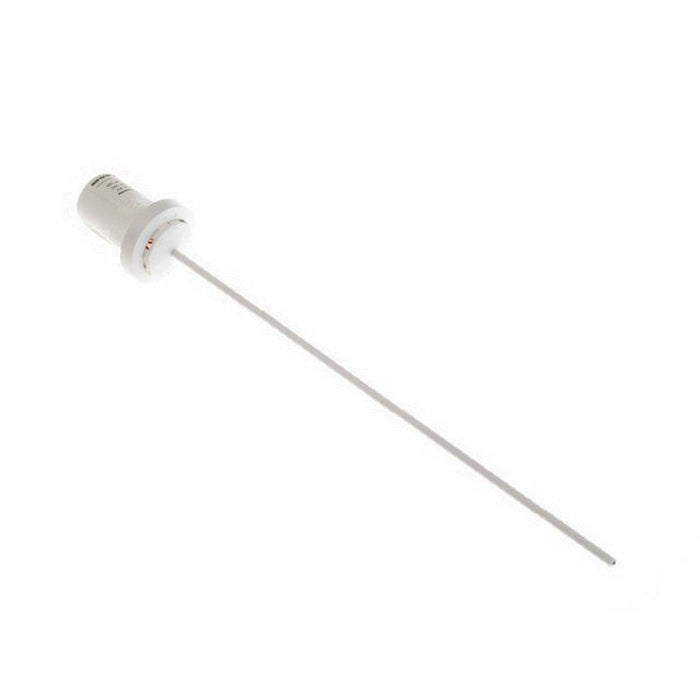

White ABS Plastic 8 in 1 kOhm Platinum RTD PTC Temperature Sensor
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TCDC0
Documents and manuals
Veris TCDC0 Documents
Overview
Details for TCDC0
Temp Ceiling | 8" | 1k Pt
Description
TC and TS sensors are ceiling-mounted in an unobtrusive housing. The easy-to-install units are ideal for office environments, as well as museums, galleries, or any other open indoor setting. These sensors are highly accurate, reliable, and come with a five-year warranty. Choose from a variety of RTD or thermistor sensor types to suit any need.
APPLICATIONS
- Hospitals and operating rooms, pharmaceutical labs
- Clean rooms
- Food processing plants
- Environmental testing facilities & other institutional applications
Specifications
Item Number | TCDC0 |
Brand | Veris |
Application Zone | Living Space |
Application | Hospitals | Labs | Clean Rooms |
Brand | Veris |
Color | Cloud White |
Dimension Depth | Installed: 0.6" (16 mm) | Total: 2.7" (68 mm) |
Dimension Height | 2" (51 mm) |
Dimension Probe Diameter | 3/16" (4.8 mm) |
Dimension Probe Length | 8" (203 mm) |
Dimension Width | 2" (51 mm) |
Electrical Wiring Size | 22 AWG (0.32 mm²) |
Enclosure Material | ABS Plastic |
Measurement Type | Temperature |
Model | TCDC0 |
Mounting | Ceiling |
Operating Temperature | -13 - 221 °F (-25 - 105 °C) |
Outputs | Resistive output |
Product Type | Sensor |
Range | TC |
Sensor Configuration | Ceiling |
Sensor | Temperature |
Temperature Calibration Certificate | None |
Temperature Measurement Accuracy | ±0.6 °F (±0.3 °C) |
Temperature Measurement Range | 32 - 122 °F (0 - 50 °C) |
Temperature Sensor Type | 1k Ohm Platinum RTD |
Warranty | 5 years |
