Get Special Pricing!

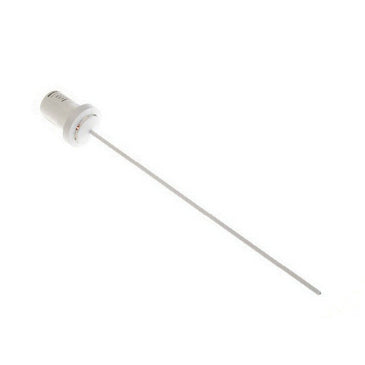

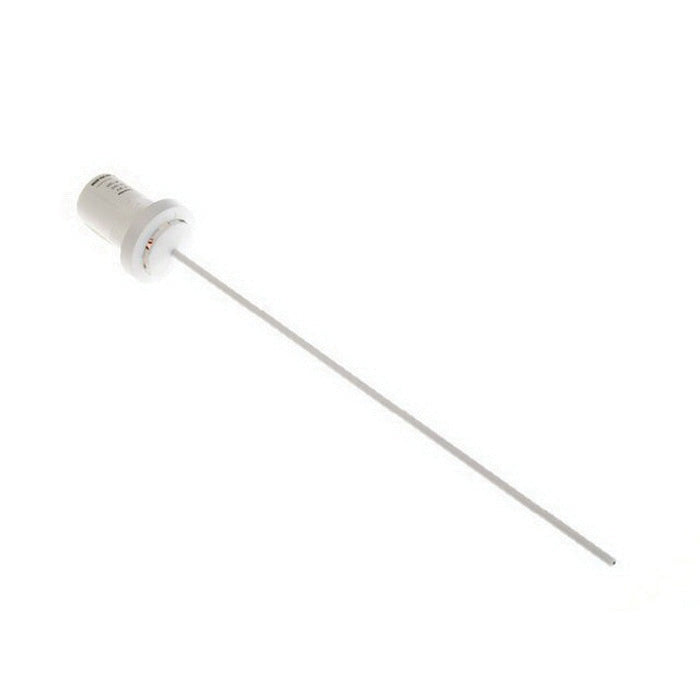

TCBC0 | Temp Ceiling | 4" | 1k Pt | Veris
White ABS Plastic 4 in 1 kOhm Platinum RTD PTC Temperature Sensor
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TCBC0
Documents and manuals
Veris TCBC0 Documents
Overview
Details for TCBC0
Temp Ceiling | 4" | 1k Pt
TC sensors are ceiling-mounted in an unobtrusive housing. The easy to install units are ideal for office environments, as well as museums, galleries or any other open indoor setting. These sensors are highly accurate, reliable and come with a 5 years warranty.
- Ceiling mount probe for more accurate readings, ideal for open office environments
- Recessed press-fit sensor virtually disappears, great for museums and galleries
Specifications
Item Number | TCBC0 |
Brand | Veris |
Application Zone | Living Space |
Application | Hospitals | Labs | Clean Rooms |
Brand | Veris |
Color | Cloud White |
Dimension Depth | Installed: 0.6" (16 mm) | Total: 2.7" (68 mm) |
Dimension Height | 2" (51 mm) |
Dimension Probe Diameter | 3/16" (4.8 mm) |
Dimension Probe Length | 4" (102 mm) |
Dimension Width | 2" (51 mm) |
Electrical Wiring Size | 22 AWG (0.32 mm²) |
Enclosure Material | ABS Plastic |
Measurement Type | Temperature |
Model | TCBC0 |
Mounting | Ceiling |
Operating Temperature | -13 - 221 °F (-25 - 105 °C) |
Outputs | Resistive output |
Product Type | Sensor |
Range | TC |
Sensor Configuration | Ceiling |
Sensor | Temperature |
Temperature Calibration Certificate | None |
Temperature Measurement Accuracy | ±0.6 °F (±0.3 °C) |
Temperature Measurement Range | 32 - 122 °F (0 - 50 °C) |
Temperature Sensor Type | 1k Ohm Platinum RTD |
Warranty | 5 years |
