TBEJ0 | Temp | Strap-On | 12 in | 10k Dale | Veris

10 kOhm Dale Thermistor High Accuracy NTC Temperature Sensor, 12 in Dia Strap-On Bracket

Brand: VerisSKU: TBEJ0

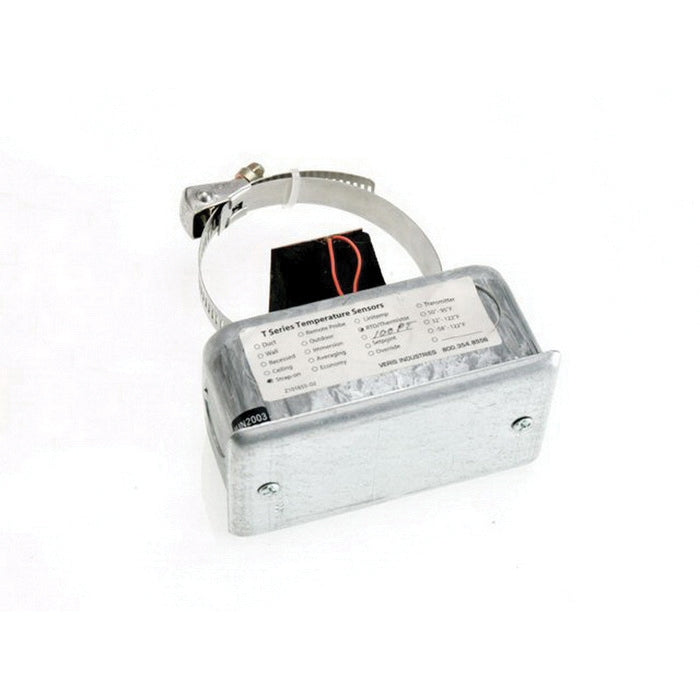

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TBEJ0

Jump to: Overview & Specifications Reviews

Overview Details for TBEJ0

The TB strap-on sensor uses a clamp to secure the unit to a pipe and a copper sensing plate for fast temperature response. The TB is perfect for secondary measurement of water temperature typical in retrofit applications. It includes a steel mounting box for wire termination and easy conduit connection.

Secondary measurement of water temperature, ideal for retrofit applications
Pipe clamps allow for easy installation on pipes up to 12 in Dia
12 in Dia maximum strap-on bracket

Specifications

Item Number	TBEJ0
Brand	Veris
Application Zone	Plant Room
Application	Pipe
Brand	Veris
Dimension Depth	1.8" (44 mm)
Dimension Height	4.2" (102 mm)
Dimension Probe Length	2 - 12" (51 - 305 mm)
Dimension Width	2.3" (58 mm)
Electrical Wiring Size	22 AWG (0.32 mm²)
Enclosure Material	Galvanized Steel
Measurement Type	Temperature
Model	TBEJ0
Mounting	Strap-On with Mounting Box
Operating Temperature	Probe: -13 - 221 °F (-25 - 105 °C) \| Wiring: -4 - 176 °F (-20 - 80 °C)
Outputs	Resistive output
Product Type	Sensor
Range	TB
Sensor Configuration	Strap
Sensor	Temperature
Temperature Calibration Certificate	None
Temperature Measurement Accuracy	±0.4 °F (±0.2 °C)
Temperature Measurement Range	-4 - 158 °F (-20 - 70 °C)
Temperature Sensor Type	10k Ohm Dale Thermistor
Warranty	5 years
