TBEC0 | Temp | Strap-On | 12 in | 1k Pt | Veris
1 kOhm Platinum RTD High Accuracy PTC Temperature Sensor, 12 in Dia Strap-On Bracket
Documents and manuals
Veris TBEC0 Documents
Overview
Details for TBEC0
Temp | Strap-On | 12 in | 1k Pt
Description

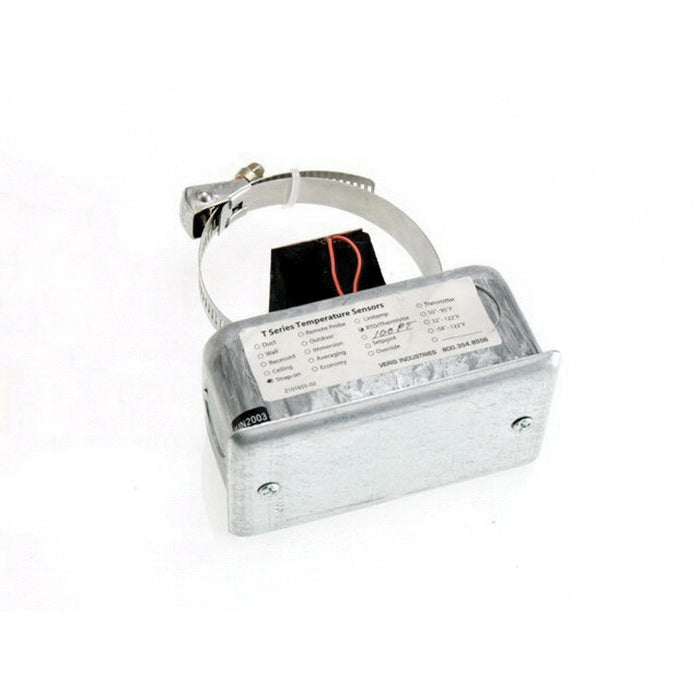

The TB strap-on sensor uses a clamp to secure the unit to a pipe and a copper sensing plate for fast temperature response. The TB is perfect for secondary measurement of water temperature typical in retrofit applications. It includes a steel mounting box for wire termination and easy conduit connection.
The TRA Series stainless steel remote probe is designed for high accuracy in remote temperature sensing applications. The TRA can be used in numerous refrigeration applications or can be mounted on pipes for chilled or heated water temperature sensing. It is easily installed and includes a durable stainless steel sensing probe and a two-wire twisted pair wire with strain relief. Multiple cable lengths are available for added flexibility.
Specifications
| Item Number | TBEC0 |
| Brand | Veris |
| Application Zone | Plant Room |
| Application | Pipe |
| Brand | Veris |
| Dimension Depth | 1.8" (44 mm) |
| Dimension Height | 4.2" (102 mm) |
| Dimension Probe Length | 2 - 12" (51 - 305 mm) |
| Dimension Width | 2.3" (58 mm) |
| Electrical Wiring Size | 22 AWG (0.32 mm²) |
| Enclosure Material | Galvanized Steel |
| Measurement Type | Temperature |
| Model | TBEC0 |
| Mounting | Strap-On with Mounting Box |
| Operating Temperature | Probe: -13 - 221 °F (-25 - 105 °C) | Wiring: -4 - 176 °F (-20 - 80 °C) |
| Outputs | Resistive output |
| Product Type | Sensor |
| Range | TB |
| Sensor Configuration | Strap |
| Sensor | Temperature |
| Temperature Calibration Certificate | None |
| Temperature Measurement Accuracy | ±0.6 °F (±0.3 °C) |
| Temperature Measurement Range | 32 - 122 °F (0 - 50 °C) |
| Temperature Sensor Type | 1k Ohm Platinum RTD |
| Warranty | 5 years |
