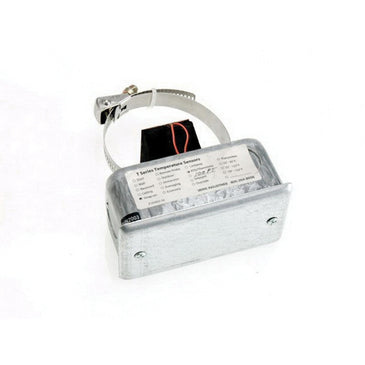

TBAJ0 | Temp Sensor | Strap-On | 2.5 In. | 10k Dale | Veris

10 kOhm Dale Thermistor High Accuracy NTC Temperature Sensor, 2-1/2 in Dia Strap-On Bracket

Brand: VerisSKU: TBAJ0

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TBAJ0

Jump to: Overview & Specifications Reviews

Overview Details for TBAJ0

The TB strap-on sensor uses a clamp to secure the unit to a pipe and a copper sensing plate for fast temperature response. The TB is perfect for secondary measurement of water temperature typical in retrofit applications. It includes a steel mounting box for wire termination and easy conduit connection.

Secondary measurement of water temperature, ideal for retrofit applications
Pipe clamps allow for easy installation on pipes up to 2-1/2 in Dia
2-1/2 in Dia maximum strap-on bracket

Specifications

Item Number	TBAJ0
Brand	Veris
Application Zone	Plant Room
Application	Pipe
Brand	Veris
Dimension Depth	1.8" (44 mm)
Dimension Height	4.2" (102 mm)
Dimension Probe Length	2 - 5" (51 - 127 mm)
Dimension Width	2.3" (58 mm)
Electrical Wiring Size	22 AWG (0.32 mm²)
Enclosure Material	Galvanized Steel
Measurement Type	Temperature
Model	TBAJ0
Mounting	Strap-On with Mounting Box
Operating Temperature	Probe: -13 - 221 °F (-25 - 105 °C) \| Wiring: -4 - 176 °F (-20 - 80 °C)
Outputs	Resistive output
Product Type	Sensor
Range	TB
Sensor Configuration	Strap
Sensor	Temperature
Temperature Calibration Certificate	None
Temperature Measurement Accuracy	±0.4 °F (±0.2 °C)
Temperature Measurement Range	-4 - 158 °F (-20 - 70 °C)
Temperature Sensor Type	10k Ohm Dale Thermistor
Warranty	5 years
