TAMP0 | Duct Avg. | Linitemp | 6' AL | Veris (OBSOLETE)

Copper Tubing 6 ft Linitemp Averaging Temperature Sensor

Brand: VerisSKU: TAMP0

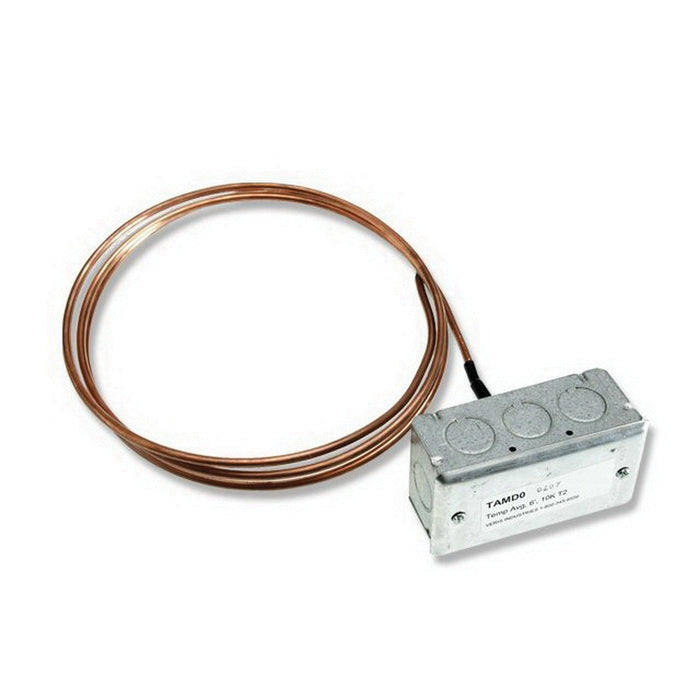

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TAMP0

Jump to: Overview & Specifications Reviews

Overview Details for TAMP0

DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS

The TA series is a flexible TA sensor which averages the temperature read across the entire length of the copper tubing, making it ideal for duct temperature measurements. TA series sensors average the measured temperature across the duct in 6 ft lengths for the flexible probe.

Specifications

Item Number	TAMP0
Brand	Veris
Application Zone	Plant Room
Application	Chiller \| Heat Exchangers
Brand	Veris
Dimension Depth	1.8" (44 mm)
Dimension Height	4.2" (102 mm)
Dimension Probe Diameter	3/16" (4.8 mm)
Dimension Probe Length	6' (1.8 m)
Dimension Width	2.3" (58 mm)
Electrical Wiring Size	22 AWG (0.32 mm²)
Enclosure Material	Galvanized Steel
Measurement Type	Temperature
Model	TAMP0
Mounting	Duct with Mounting Box
Operating Temperature	-13 - 221 °F (-25 - 105 °C)
Outputs	Resistive output
Product Type	Sensor
Range	TA
Sensor Averaging Wire Length	6 feet
Sensor Configuration	Averaging
Sensor	Temperature
Temperature Calibration Certificate	None
Temperature Measurement Range	-13 - 221 °F (-25 - 105 °C)
Temperature Sensor Type	10 mV/C Linitemp
Warranty	5 years
