TAMI0 | Temp | Duct Avg | 6 ft | Balco RTD | Veris

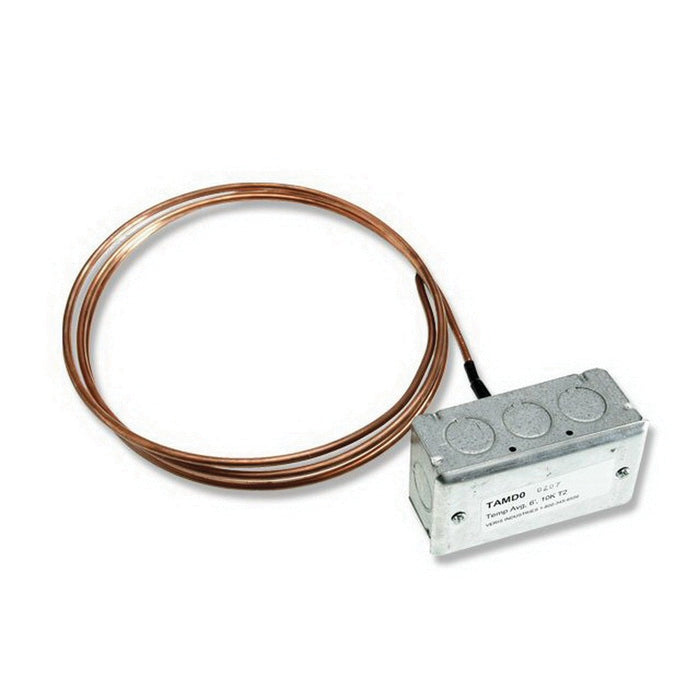

Copper Tubing 6 ft 1 kOhm Balco (Nickel-Iron) RTD PTC Averaging Temperature Sensor

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TAMI0

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris TAMI0 Documents

Datasheet Installation Guide More Info

Overview

Details for TAMI0

Temp | Duct Avg | 6 ft | Balco RTD

The TA series is a flexible TA sensor which averages the temperature read across the entire length of the copper tubing, making it ideal for duct temperature measurements. TA series sensors average the measured temperature across the duct in 6 ft lengths for the flexible probe.

Specifications

Item Number	TAMI0
Brand	Veris
Application Zone	Plant Room
Application	Chiller \| Heat Exchangers
Brand	Veris
Dimension Depth	1.8" (44 mm)
Dimension Height	4.2" (102 mm)
Dimension Probe Diameter	3/16" (4.8 mm)
Dimension Probe Length	6' (1.8 m)
Dimension Width	2.3" (58 mm)
Electrical Wiring Size	22 AWG (0.32 mm²)
Enclosure Material	Galvanized Steel
Measurement Type	Temperature
Model	TAMI0
Mounting	Duct with Mounting Box
Operating Temperature	-13 - 221 °F (-25 - 105 °C)
Outputs	Resistive output
Product Type	Sensor
Range	TA
Sensor Averaging Wire Length	6 feet
Sensor Configuration	Averaging
Sensor	Temperature
Temperature Calibration Certificate	None
Temperature Measurement Accuracy	±1.2 °F (±0.7 °C) @ 158 °F (70 °C)
Temperature Sensor Type	1k Ohm BALCO (Nickel Iron) RTD
Warranty	5 years
