TAJH0 | Copper Tubing 24 ft 10 kOhm T3 Thermistor NTC Averaging Temperature Sensor | Veris

Copper Tubing 24 ft 10 kOhm T3 Thermistor NTC Averaging Temperature Sensor

Brand: VerisSKU: TAJH0
Veris | TAJH0

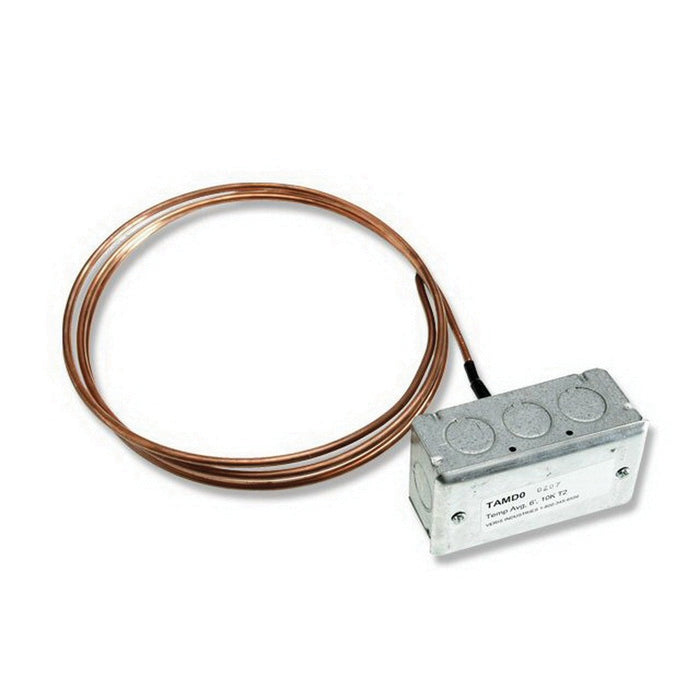

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TAJH0
Jump to: Overview & Specifications Reviews

Overview Details for TAJH0

The TA series is a flexible TA sensor which averages the temperature read across the entire length of the copper tubing, making it ideal for duct temperature measurements. TA series sensors average the measured temperature across the duct in 24 ft lengths for the flexible probe.

Specifications

Item Number TAJH0
Brand Veris
Application Zone Plant Room
Application Chiller | Heat Exchangers
Brand Veris
Dimension Depth 1.8" (44 mm)
Dimension Height 4.2" (102 mm)
Dimension Probe Diameter 3/16" (4.8 mm)
Dimension Probe Length 24' (7.3 m)
Dimension Width 2.3" (58 mm)
Electrical Wiring Size 22 AWG (0.32 mm²)
Enclosure Material Galvanized Steel
Measurement Type Temperature
Model TAJH0
Mounting Duct with Mounting Box
Operating Temperature -13 - 221 °F (-25 - 105 °C)
Outputs Resistive output
Product Type Sensor
Range TA
Sensor Averaging Wire Length 24 feet
Sensor Configuration Averaging
Sensor Temperature
Temperature Calibration Certificate None
Temperature Measurement Accuracy ±0.4 °F (±0.2 °C)
Temperature Measurement Range 32 - 158 °F (0 - 70 °C)
Temperature Sensor Type 10k Ohm Type 3 Thermistor
Warranty 5 years
