PX3UXN05S | Pressure,Dry,Univ,NIST,0-10 InWC | Veris

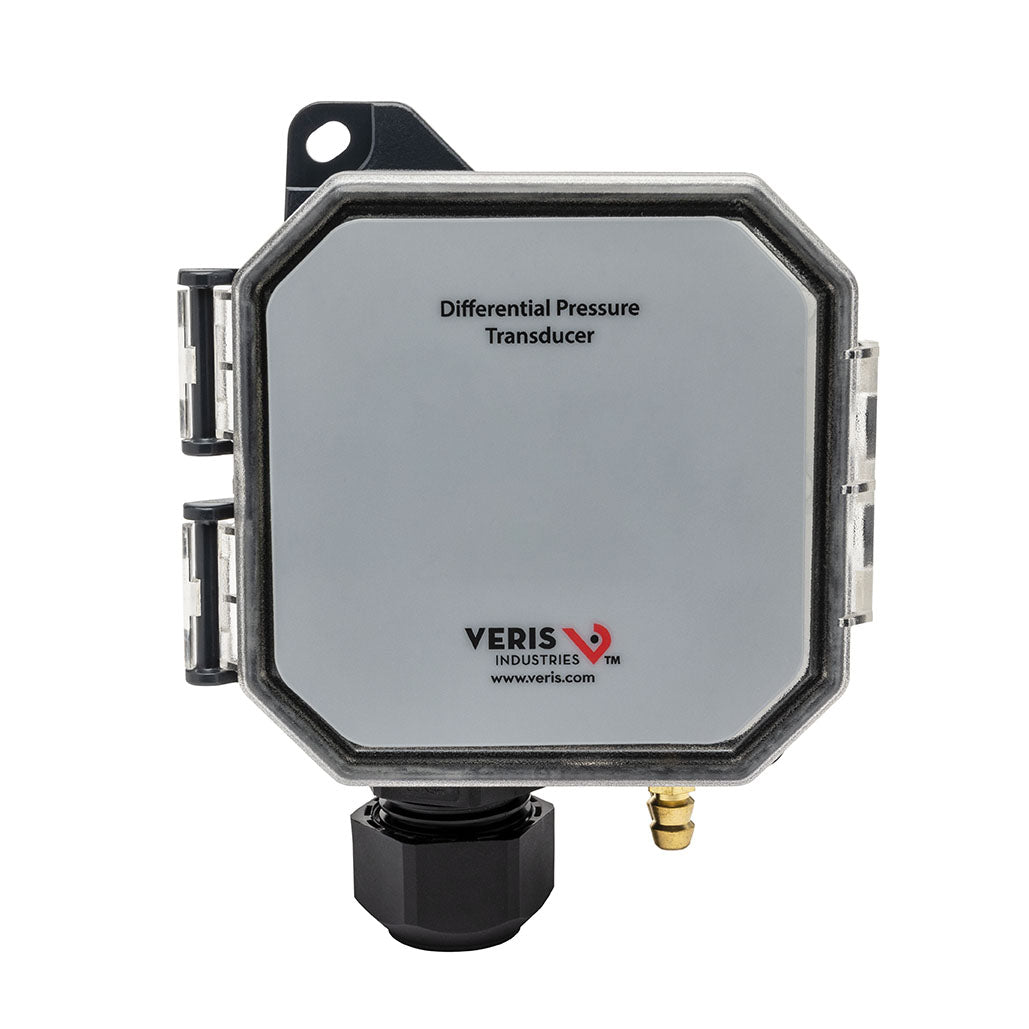

Veris | PX3UXN05S
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to PX3UXN05S

Documents and manuals

Overview

Details for PX3UXN05S

Download the PX3 Bluetooth Mobile Application and User Guide


The PX3 transducer can measure either air pressure or velocity with the flip of a switch. The universal model comes in one pressure/velocity range - 0 to 10 in-WG/0 to 7000 ft/min with seven field-selectable sub-ranges for pressure and eight for velocity. The PX3 has an IP65/NEMA 4 environmental rating and a 5 years limited warranty.

  • Wireless configuration - view and configure all field selectable parameters via smartphone, no ladder necessary for duct mount applications
  • High accuracy digital sensor with seven selectable pressure and eight velocity sub-ranges, maintains calibration and reduces callbacks
  • High reliability sensor technology for long-term, maintenance-free operation
  • Excellent tolerance to overpressure and vibration reduces field failures
  • Water resistant housing - IP65/NEMA 4 housing allows for mounting in wash-down locations
  • Circuit protection avoids damage due to incorrect input wiring
  • Universal enclosure
  • NIST certified (16-point calibration)
  • Uni-directional or bi-directional, DIP switch selectable modes
  • Pushbutton auto-zero and digital input (2-position terminal block)
  • For indoor or outdoor use

Specifications

Item Number PX3UXN05S
Brand Veris
Application Zone Plant Room
Application Duct Pressure Monitoring | Filter Monitoring | Fan Monitoring | VAV Control | Air Velocity Monitoring
Brand Veris
Burst Pressure 5 psid (34 500 Pa)
Calibration Certificate NIST Certificate
Dimension Depth 1.6" (42 mm)
Dimension Height 4.4" (112 mm)
Dimension Probe Diameter 0.3" (7 mm)
Dimension Probe Length 7.4" (188 mm)
Dimension Weight 4.4 oz (125 g)
Dimension Width 3.5" (88 mm)
Display Type None
Electrical Wiring Size AWG 22 (35 mm²)
Electrical Wiring 3-wires
Enclosure Material ABS Plastic
Fitting Material Brass
Fitting Size 0.24" (6 mm)
Fitting Type Male
IP Protection IP65 (NEMA 4)
LED Indicator Type RGB
Measurement Type Differential Pressure
Medium Air | Gas
Model PX3UXN05
Mounting Duct | Panel
Operating Temperature -4 - 140 °F (-20 - 60 °C)
Output Specifications 4 - 20 mA | 0 - 5 V | 0 - 10 V
Outputs Analog output
Pressure Measurement Accuracy ±1% of F.S.
Pressure Measurement Range 0.1"WC (25 Pa) | 0.25"WC (50 Pa) | 0.5"WC (100 Pa) | 1"WC (250 Pa) | 2.5"WC (500 Pa) | 5"WC (1000 Pa) | 10"WC (2500 Pa)
Product Certification CE
Product Type Sensor
Range PX3
Standards EMC EN 61000-6-3 | Class B | EN 61000-6-1 | EN61326-1 | EN61326-2-3
Supply Voltage AC Nominal 24 VAC
Supply Voltage DC Range 12 - 30 VDC
Warranty 5 years
