PX3ULX05S | Pressure,Dry,Univ,LCD,0-10 InWC | Veris

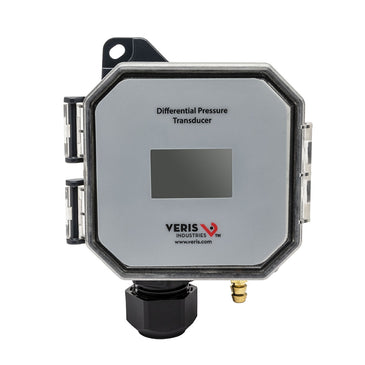

Universal Enclosure Dry Media Differential Pressure/Air Velocity Transducer with LCD Display, 0 to 10 in-WG
Overview Details for PX3ULX05S
The PX3 transducer can measure either air pressure or velocity with the flip of a switch. The PX3ULX05S non bluetooth universal model comes in one pressure/velocity range - 0 to 10 in-WG/0 to 7000 ft/min with seven field-selectable sub-ranges for pressure and eight for velocity. The PX3 has an IP65/NEMA 4 environmental rating and a 5 years limited warranty.
- LCD Display
- High accuracy digital sensor with seven selectable pressure and eight velocity sub-ranges, maintains calibration and reduces callbacks
- High reliability sensor technology for long-term, maintenance-free operation
- Excellent tolerance to overpressure and vibration reduces field failures
- Water resistant housing - IP65/NEMA 4 housing allows for mounting in wash-down locations
- Circuit protection avoids damage due to incorrect input wiring
- Universal enclosure
- Uni-directional or bi-directional, DIP switch selectable modes
- Pushbutton auto-zero and digital input (2-position terminal block)
- For indoor or outdoor use
For the bluetooth version, see PX3ULX05
Description
The PX3 transducer can measure either air pressure or velocity with the flip of a switch. The PX3 is available in three installation configurations: duct, panel or universal. Duct and panel models have two pressure and velocity options: 0-1 in. WC / 0-3,000 ft/min or 1-10 in. WC / 3,000-6,000 ft/min with four field-selectable subranges. The universal model comes in one pressure/velocity range: 0-10 in. WC / 0-7,000 ft/min with seven field-selectable sub-ranges for pressure and eight for velocity. All variants are available with and without display. The PX3 has an IP65/NEMA 4 environmental rating and a 5-year limited warranty.
Features
- Reduce field failures Excellent tolerance to overpressure & vibration reduces field failures
- Reduce setup Selectable ranges and scales reduce setup time and number of models to stock
- High accuracy High accuracy digital sensor with seven selectable pressure and eight velocity sub-ranges, maintains calibration and reduces callbacks
- Water-resistant housing IP65/NEMA 4 housing allows for mounting in wash-down locations
- Maintenance free High reliability sensor technology for long-term, maintenance-free operation
- Circuit protection Circuit protection avoids damage due to incorrect input wiring
APPLICATIONS
- Duct static pressure (Pressure mode)
- Building or room pressure (Pressure mode)
- Filter status (Pressure mode)
- Air flow measurement (Velocity mode)
Specifications
Item Number | PX3ULX05S |
Brand | Veris |
Application Zone | Plant Room |
Application | Duct Pressure Monitoring | Filter Monitoring | Fan Monitoring | VAV Control | Air Velocity Monitoring |
Bluetooth Communication | No |
Brand | Veris |
Burst Pressure | 5 psid (34 500 Pa) |
Calibration Certificate | No |
Dimension Depth | 1.6" (42 mm) |
Dimension Height | 4.4" (112 mm) |
Dimension Probe Diameter | 0.3" (7 mm) |
Dimension Probe Length | 7.4" (188 mm) |
Dimension Weight | 4.4 oz (125 g) |
Dimension Width | 3.5" (88 mm) |
Display Precision | 0.001 |
Display Size | 0.7" x 1.1" (17 mm x 28 mm) |
Display Type | LCD |
Electrical Wiring Size | AWG 22 (35 mm²) |
Electrical Wiring | 3-wires |
Enclosure Material | ABS Plastic |
Fitting Material | Brass |
Fitting Size | 0.24" (6 mm) |
Fitting Type | Male |
IP Protection | IP65 (NEMA 4) |
LED Indicator Type | RGB |
Measurement Type | Differential Pressure |
Medium | Air | Gas |
Model | PX3ULX05 |
Model | PX3ULX05S |
Mounting | Duct | Panel |
Operating Temperature | -4 - 140 °F (-20 - 60 °C) |
Output Specifications | 4 - 20 mA | 0 - 5 V | 0 - 10 V |
Outputs | Analog output |
Pressure Measurement Accuracy | ±1% of F.S. |
Pressure Measurement Range | 0.1"WC (25 Pa) | 0.25"WC (50 Pa) | 0.5"WC (100 Pa) | 1"WC (250 Pa) | 2.5"WC (500 Pa) | 5"WC (1000 Pa) | 10"WC (2500 Pa) |
Product Certification | CE |
Product Type | Sensor |
Range | PX3 |
Standards EMC | EN 61000-6-3 | Class B | EN 61000-6-1 | EN61326-1 | EN61326-2-3 |
Supply Voltage AC Nominal | 24 VAC |
Supply Voltage DC Range | 12 - 30 VDC |
Warranty | 5 years |
