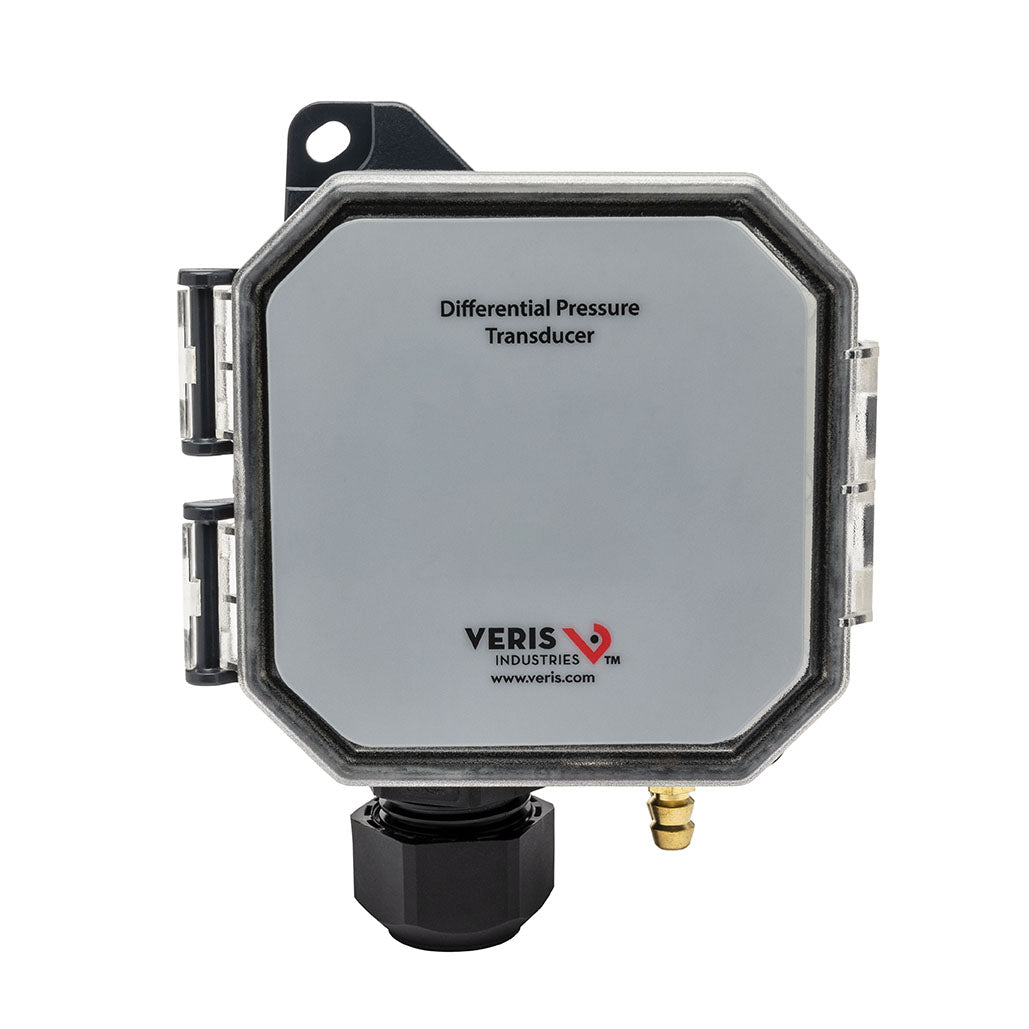

PX3PXX02S | Pressure,Dry,Panel,1-10 InWC | Veris

The PX3 transducer can measure either air pressure or velocity with the flip of a switch. PX3PXX02S non bluetooth Panel model has pressure and velocity options 1 to 10 in-WG/3000 to 6000 ft/min with four field-selectable subranges. The PX3 has an IP65/NEMA 4 environmental rating and a 5 years limited warranty.

• High reliability sensor technology for long-term, maintenance-free operation
• Excellent tolerance to overpressure and vibration reduces field failures
• Water resistant housing - IP65/NEMA 4 housing allows for mounting in wash-down locations
• Circuit protection avoids damage due to incorrect input wiring
• Panel enclosure
• Uni-directional or bi-directional, DIP switch selectable modes
• Pushbutton auto-zero and digital input (2-position terminal block)
• For indoor or outdoor use

For the bluetooth version, see PX3PXX02

The PX3 transducer can measure either air pressure or velocity with the flip of a switch. The PX3 is available in three installation configurations: duct, panel or universal. Duct and panel models have two pressure and velocity options: 0-1 in. WC / 0-3,000 ft/min or 1-10 in. WC / 3,000-6,000 ft/min with four field-selectable subranges. The universal model comes in one pressure/velocity range: 0-10 in. WC / 0-7,000 ft/min with seven field-selectable sub-ranges for pressure and eight for velocity. All variants are available with and without display. The PX3 has an IP65/NEMA 4 environmental rating and a 5-year limited warranty
