PX3PXX01S | Pressure,Dry,Panel,0-1 InWC | Veris

Veris | PX3PXX01S

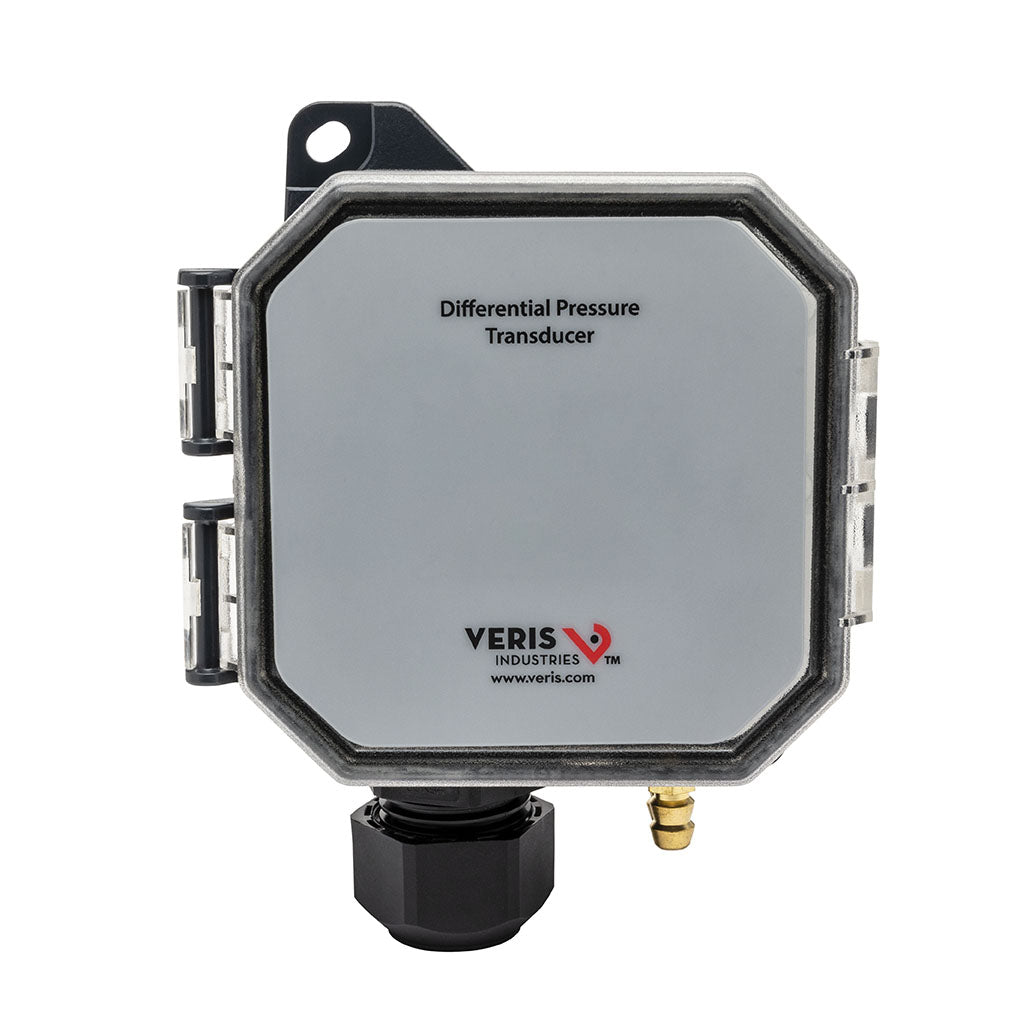

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to PX3PXX01S

Documents and manuals

Overview

Details for PX3PXX01S

The PX3 transducer can measure either air pressure or velocity with the flip of a switch. The PX3 is available in three installation configurations: duct, panel or universal. Duct and panel models have two pressure and velocity options: 0-1 in. WC / 0-3,000 ft/min or 1-10 in. WC / 3,000-6,000 ft/min with four field-selectable subranges. The universal model comes in one pressure/velocity range: 0-10 in. WC / 0-7,000 ft/min with seven field-selectable sub-ranges for pressure and eight for velocity. All variants are available with and without display. The PX3 has an IP65/NEMA 4 environmental rating and a 5-year limited warranty

Specifications

Item Number PX3PXX01S
Brand Veris
Application Zone Plant Room
Application Duct Pressure Monitoring | Filter Monitoring | Fan Monitoring | VAV Control | Air Velocity Monitoring
Brand Veris
Burst Pressure 5 psid (34 500 Pa)
Calibration Certificate No
Dimension Depth 1.6" (42 mm)
Dimension Height 4.4" (112 mm)
Dimension Probe Diameter 0.3" (7 mm)
Dimension Probe Length 7.4" (188 mm)
Dimension Weight 4.4 oz (125 g)
Dimension Width 3.5" (88 mm)
Display Type None
Electrical Wiring Size AWG 22 (35 mm²)
Electrical Wiring 3-wires
Enclosure Material ABS Plastic
Fitting Material Brass
Fitting Size 0.24" (6 mm)
Fitting Type Male
IP Protection IP65 (NEMA 4)
LED Indicator Type RGB
Measurement Type Differential Pressure
Medium Air | Gas
Model PX3PXX01
Mounting Panel
Operating Temperature -4 - 140 °F (-20 - 60 °C)
Output Specifications 4 - 20 mA | 0 - 5 V | 0 - 10 V
Outputs Analog output
Pressure Measurement Accuracy ±1% of F.S.
Pressure Measurement Range 0.1"WC (25 Pa) | 0.25"WC (50 Pa) | 0.5"WC (100 Pa) | 1"WC (250 Pa)
Product Certification CE
Product Type Sensor
Range PX3
Standards EMC EN 61000-6-3 | Class B | EN 61000-6-1 | EN61326-1 | EN61326-2-3
Supply Voltage AC Nominal 24 VAC
Supply Voltage DC Range 12 - 30 VDC
Warranty 5 years
