PX3PXN01S | Pressure,Dry,Panel,NIST,0-1 InWC | Veris

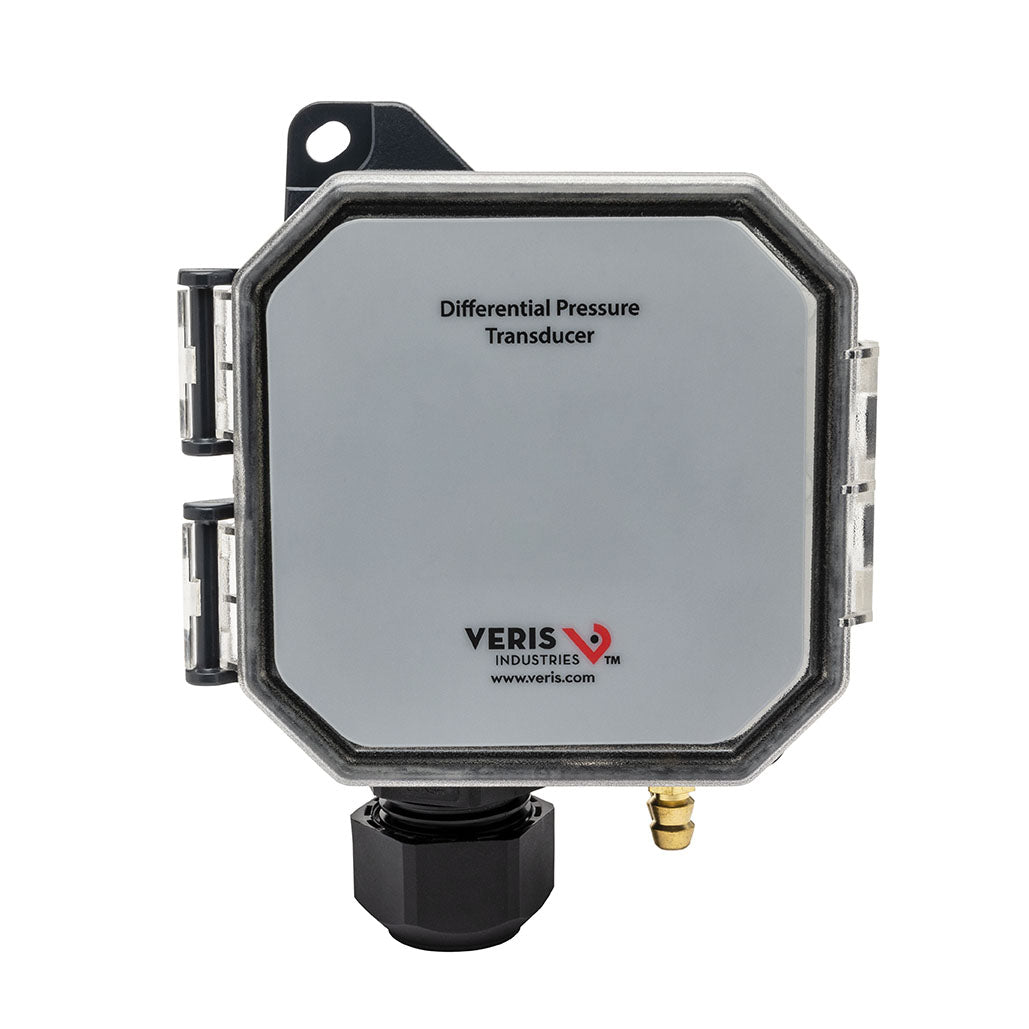

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to PX3PXN01S

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris PX3PXN01S Documents

CE Declaration Datasheet Installation Guide User Guide More Info

Overview

Details for PX3PXN01S

Download the PX3 Bluetooth Mobile Application and User Guide

The PX3 transducer can measure either air pressure or velocity with the flip of a switch. Panel model have two pressure and velocity options - 0 to 1 in-WG/0 to 3000 ft/min or 1 to 10 in-WG/3000 to 6000 ft/min with four field-selectable subranges. The PX3 has an IP65/NEMA 4 environmental rating and a 5 years limited warranty.

Wireless configuration - view and configure all field selectable parameters via smartphone, no ladder necessary for duct mount applications
High reliability sensor technology for long-term, maintenance-free operation
Excellent tolerance to overpressure and vibration reduces field failures
Water resistant housing - IP65/NEMA 4 housing allows for mounting in wash-down locations
Circuit protection avoids damage due to incorrect input wiring
Panel enclosure
NIST certified (8-point calibration)
Uni-directional or bi-directional, DIP switch selectable modes
Pushbutton auto-zero and digital input (2-position terminal block)
For indoor or outdoor use

Specifications

Item Number	PX3PXN01S
Brand	Veris
Application Zone	Plant Room
Application	Duct Pressure Monitoring \| Filter Monitoring \| Fan Monitoring \| VAV Control \| Air Velocity Monitoring
Brand	Veris
Burst Pressure	5 psid (34 500 Pa)
Calibration Certificate	NIST Certificate
Dimension Depth	1.6" (42 mm)
Dimension Height	4.4" (112 mm)
Dimension Probe Diameter	0.3" (7 mm)
Dimension Probe Length	7.4" (188 mm)
Dimension Weight	4.4 oz (125 g)
Dimension Width	3.5" (88 mm)
Display Type	None
Electrical Wiring Size	AWG 22 (35 mm²)
Electrical Wiring	3-wires
Enclosure Material	ABS Plastic
Fitting Material	Brass
Fitting Size	0.24" (6 mm)
Fitting Type	Male
IP Protection	IP65 (NEMA 4)
LED Indicator Type	RGB
Measurement Type	Differential Pressure
Medium	Air \| Gas
Model	PX3PXN01
Mounting	Panel
Operating Temperature	-4 - 140 °F (-20 - 60 °C)
Output Specifications	4 - 20 mA \| 0 - 5 V \| 0 - 10 V
Outputs	Analog output
Pressure Measurement Accuracy	±1% of F.S.
Pressure Measurement Range	0.1"WC (25 Pa) \| 0.25"WC (50 Pa) \| 0.5"WC (100 Pa) \| 1"WC (250 Pa)
Product Certification	CE
Product Type	Sensor
Range	PX3
Standards EMC	EN 61000-6-3 \| Class B \| EN 61000-6-1 \| EN61326-1 \| EN61326-2-3
Supply Voltage AC Nominal	24 VAC
Supply Voltage DC Range	12 - 30 VDC
Warranty	5 years
