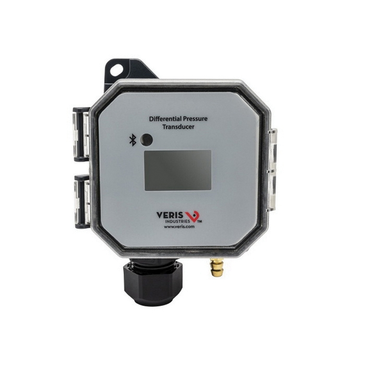

PX3PLX02 | Pressure | Dry | Panel | LCD | 1-10 In WC | Veris
Bluetooth Panel Enclosure Dry Media Differential Pressure/Air Velocity Transducer with LCD Display, 1 to 10 in-WG
Documents and manuals
Veris PX3PLX02 Documents
Overview
Details for PX3PLX02
Pressure | Dry | Panel | LCD | 1-10 In WC
Description
The PX3 transducer can measure either air pressure or velocity with the flip of a switch. The PX3 is available in three installation configurations: duct, panel or universal. Duct and panel models have two pressure and velocity options: 0-1 in. WC / 0-3,000 ft/min or 1-10 in. WC / 3,000-6,000 ft/min with four field-selectable subranges. The universal model comes in one pressure/velocity range: 1-10 in. WC / 0-7,000 ft/min with seven field-selectable sub-ranges for pressure and eight for velocity. All variants are available with and without display. The PX3 has an IP65/NEMA 4 environmental rating and a 5-year limited warranty.
Specifications
| Item Number | PX3PLX02 |
| Brand | Veris |
| Application Zone | Plant Room |
| Application | Duct Pressure Monitoring | Filter Monitoring | Fan Monitoring | VAV Control | Air Velocity Monitoring |
| Brand | Veris |
| Burst Pressure | 5 psid (34 500 Pa) |
| Calibration Certificate | No |
| Dimension Depth | 1.6" (42 mm) |
| Dimension Height | 4.4" (112 mm) |
| Dimension Probe Diameter | 0.3" (7 mm) |
| Dimension Probe Length | 7.4" (188 mm) |
| Dimension Weight | 4.4 oz (125 g) |
| Dimension Width | 3.5" (88 mm) |
| Display Precision | 0.001 |
| Display Size | 0.7" x 1.1" (17 mm x 28 mm) |
| Display Type | LCD |
| Electrical Wiring Size | AWG 22 (35 mm²) |
| Electrical Wiring | 3-wires |
| Enclosure Material | ABS Plastic |
| Fitting Material | Brass |
| Fitting Size | 0.24" (6 mm) |
| Fitting Type | Male |
| IP Protection | IP65 (NEMA 4) |
| LED Indicator Type | RGB |
| Measurement Type | Differential Pressure |
| Medium | Air | Gas |
| Model | PX3PLX02 |
| Mounting | Panel |
| Operating Temperature | -4 - 140 °F (-20 - 60 °C) |
| Output Specifications | 4 - 20 mA | 0 - 5 V | 0 - 10 V |
| Outputs | Analog output |
| Pressure Measurement Accuracy | ±1% of F.S. |
| Pressure Measurement Range | 1"WC (250 Pa) | 2.5"WC (500 Pa) | 5"WC (1000 Pa) | 10"WC (2500 Pa) |
| Product Certification | CE |
| Product Type | Sensor |
| Range | PX3 |
| Standards EMC | EN 61000-6-3 | Class B | EN 61000-6-1 | EN61326-1 | EN61326-2-3 |
| Supply Voltage AC Nominal | 24 VAC |
| Supply Voltage DC Range | 12 - 30 VDC |
| Warranty | 5 years |
