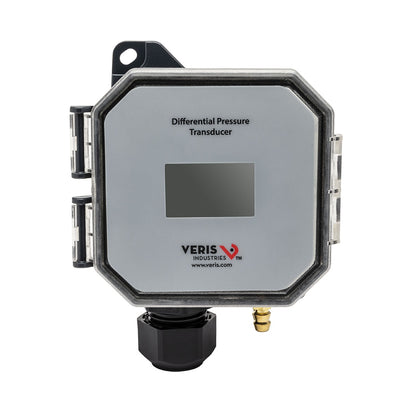

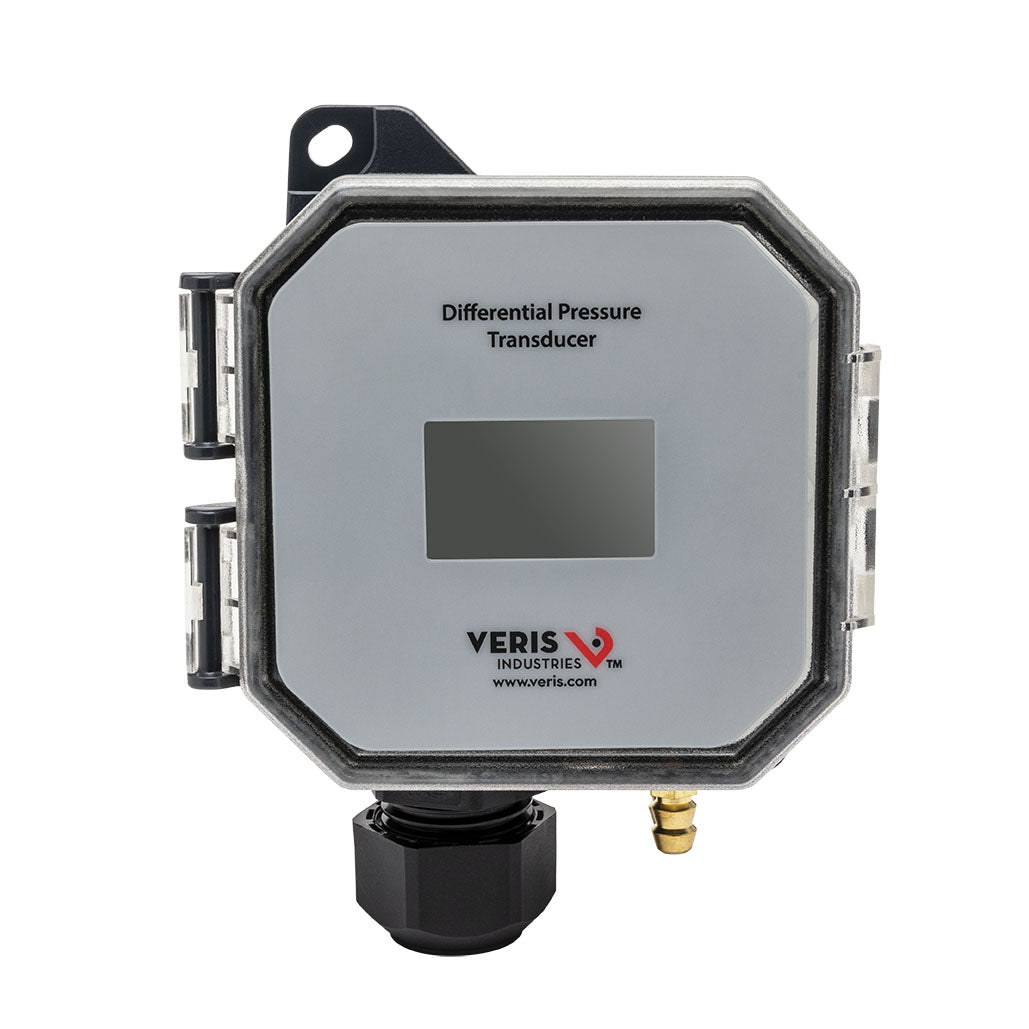

PX3PLN01S | Pressure,Dry,Panel,LCD,NIST,0-1 InWC | Veris

The PX3 transducer can measure either air pressure or velocity with the flip of a switch. PX3PLN01S is a non bluetooth Panel model with pressure and velocity 0 to 1 in-WG/0 to 3000 ft/min with four field-selectable subranges. The PX3 has an IP65/NEMA 4 environmental rating and a 5 years limited warranty.

• LCD Display
• Non-Bluetooth
• High reliability sensor technology for long-term, maintenance-free operation
• Excellent tolerance to overpressure and vibration reduces field failures
• Water resistant housing - IP65/NEMA 4 housing allows for mounting in wash-down locations
• Circuit protection avoids damage due to incorrect input wiring
• Panel enclosure
• NIST certified (8-point calibration)
• Uni-directional or bi-directional, DIP switch selectable modes
• Pushbutton auto-zero and digital input (2-position terminal block)
• For indoor or outdoor use

For the Bluetooth version, see PX3PLN01

Description

The PX3 transducer can measure either air pressure or velocity with the flip of a switch. The PX3 is available in three installation configurations: duct, panel or universal. Duct and panel models have two pressure and velocity options: 0-1 in. WC / 0-3,000 ft/min or 1-10 in. WC / 3,000-6,000 ft/min with four field-selectable subranges. The universal model comes in one pressure/velocity range: 0-10 in. WC / 0-7,000 ft/min with seven field-selectable sub-ranges for pressure and eight for velocity. All variants are available with and without display. The PX3 has an IP65/NEMA 4 environmental rating and a 5-year limited warranty

Reduce field failures

Excellent tolerance to overpressure & vibration reduces field failures

Reduce setup

Selectable ranges and scales reduce setup time and number of models to stock

High accuracy

High accuracy digital sensor with seven selectable pressure and eight velocity sub-ranges, maintains calibration and reduces callbacks

Water-resistant housing

IP65/NEMA 4 housing allows for mounting in wash-down locations

Maintenance free

High reliability sensor technology for long-term, maintenance-free operation

Circuit protection

Circuit protection avoids damage due to incorrect input wiring

Applications

• Duct static pressure (Pressure mode)
• Building or room pressure (Pressure mode)
• Filter status (Pressure mode)
• Air flow measurement (Velocity mode)
