PX3DXX02 | Pressure,Dry,Duct,0-10 In WC | Veris

Bluetooth Duct Enclosure Dry Media Differential Pressure/Air Velocity Transducer, 1 to 10 in-WG

Brand: VerisSKU: PX3DXX02

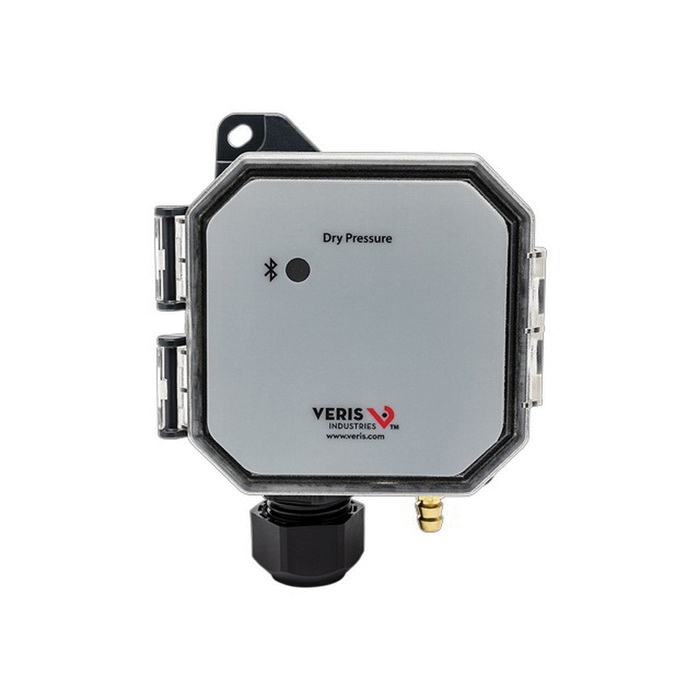

Veris | PX3DXX02
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to PX3DXX02

Overview Details for PX3DXX02

Download the PX3 Bluetooth Mobile Application and User Guide

The PX3 transducer can measure either air pressure or velocity with the flip of a switch. PX3DXX02 is a Duct model with pressure and velocity of 1 to 10 in-WG/3000 to 6000 ft/min with four field-selectable subranges. The PX3 has an IP65/NEMA 4 environmental rating and a 5 years limited warranty.

  • Wireless configuration - view and configure all field selectable parameters via smartphone, no ladder necessary for duct mount applications
  • High reliability sensor technology for long-term, maintenance-free operation
  • Excellent tolerance to overpressure and vibration reduces field failures
  • Water resistant housing - IP65/NEMA 4 housing allows for mounting in wash-down locations
  • Circuit protection avoids damage due to incorrect input wiring
  • Duct enclosure
  • Uni-directional or bi-directional, DIP switch selectable modes
  • Pushbutton auto-zero and digital input (2-position terminal block)
  • For indoor or outdoor use

For the non bluetooth version, see PX3DXX02S

Specifications

Item Number PX3DXX02
Brand Veris
App Connectivity Veris App via Enablable Bluetooth
Application Zone Plant Room
Application Duct Pressure Monitoring | Filter Monitoring | Fan Monitoring | VAV Control | Air Velocity Monitoring
Bluetooth Communication Yes
Brand Veris
Burst Pressure 5 psid (34 500 Pa)
Calibration Certificate No
Dimension Depth 1.6" (42 mm)
Dimension Height 4.4" (112 mm)
Dimension Probe Diameter 0.3" (7 mm)
Dimension Probe Length 7.4" (188 mm)
Dimension Weight 4.4 oz (125 g)
Dimension Width 3.5" (88 mm)
Display Type None
Electrical Wiring Size AWG 22 (35 mm²)
Electrical Wiring 3-wires
Enclosure Material ABS Plastic
Fitting Material Brass
Fitting Size 0.24" (6 mm)
Fitting Type Male
IP Protection IP65 (NEMA 4)
LED Indicator Type RGB
Measurement Type Differential Pressure
Medium Air | Gas
Model PX3DXX02
Mounting Duct
Operating Temperature -4 - 140 °F (-20 - 60 °C)
Output Specifications 4 - 20 mA | 0 - 5 V | 0 - 10 V
Outputs Analog output
Pressure Measurement Accuracy ±1% of F.S.
Pressure Measurement Range 1"WC (250 Pa) | 2.5"WC (500 Pa) | 5"WC (1000 Pa) | 10"WC (2500 Pa)
Product Certification CE
Product Type Sensor
Range PX3
Standards EMC EN 61000-6-3 | Class B | EN 61000-6-1 | EN61326-1 | EN61326-2-3
Supply Voltage AC Nominal 24 VAC
Supply Voltage DC Range 12 - 30 VDC
Warranty 5 years
