PX3DXN01S | Duct Enclosure Dry Media Differential Pressure/Air Velocity Transducer, NIST 8-Point, 0 to 1 in-WG | Veris

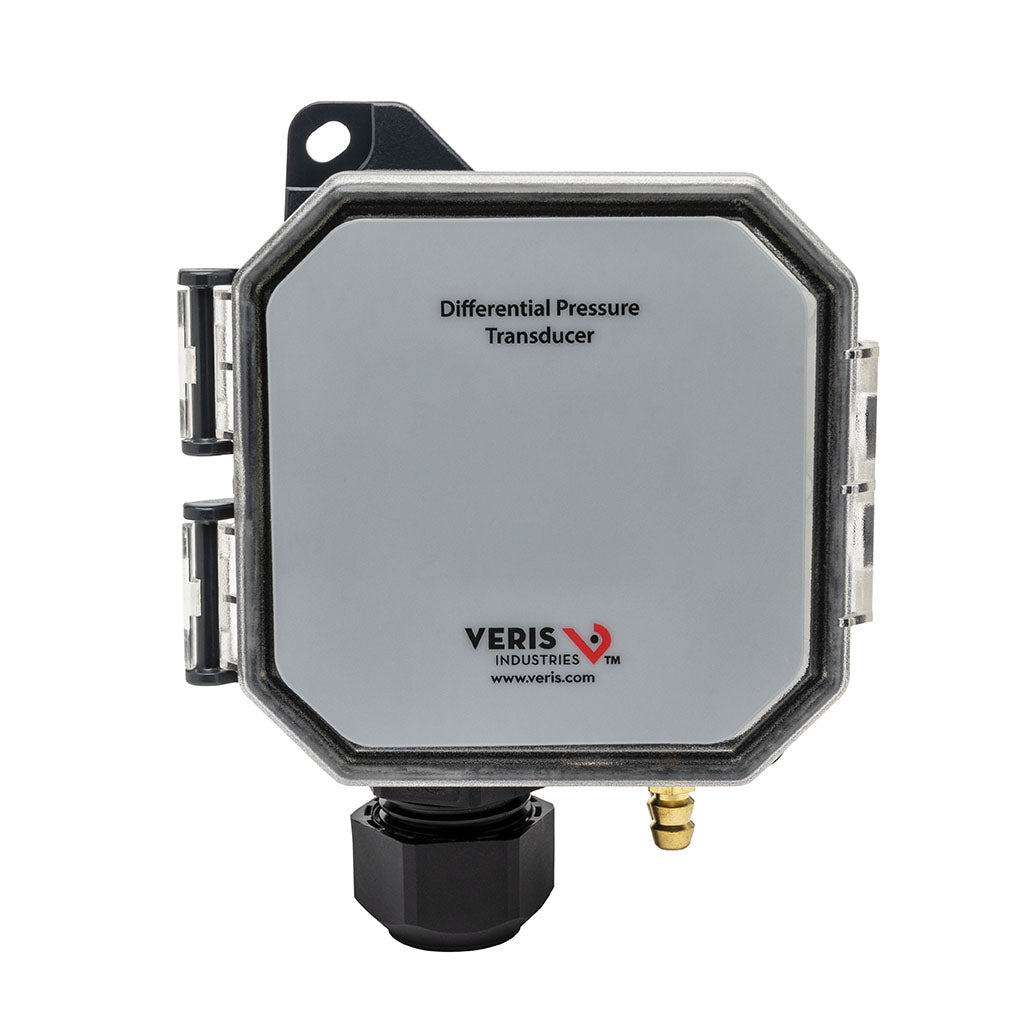

Duct Enclosure Dry Media Differential Pressure/Air Velocity Transducer, NIST 8-Point, 0 to 1 in-WG
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to PX3DXN01S
Overview Details for PX3DXN01S
The PX3 transducer can measure either air pressure or velocity with the flip of a switch. PX3DXN01S Duct models has pressure and velocity of 0 to 1 in-WG / 0 to 3000 ft/min with four field-selectable subranges. The PX3 has an IP65/NEMA 4 environmental rating and a 5 years limited warranty.
- High reliability sensor technology for long-term, maintenance-free operation
- Excellent tolerance to overpressure and vibration reduces field failures
- Water resistant housing - IP65/NEMA 4 housing allows for mounting in wash-down locations
- Circuit protection avoids damage due to incorrect input wiring
- Duct enclosure
- NIST certified (8-point calibration)
- Uni-directional or bi-directional, DIP switch selectable modes
- Pushbutton auto-zero and digital input (2-position terminal block)
- For indoor or outdoor use
For the bluetooth version, see PX3DXN01
Download the PX3 Bluetooth Mobile Application and User Guide
The PX3 transducer can measure either air pressure or velocity with the flip of a switch. Duct and panel models have two pressure and velocity options - 0 to 1 in-WG / 0 to 3000 ft/min or 1 to 10 in-WG/3000 to 6000 ft/min with four field-selectable subranges. The PX3 has an IP65/NEMA 4 environmental rating and a 5 years limited warranty.
- Wireless configuration - view and configure all field selectable parameters via smartphone, no ladder necessary for duct mount applications
- High reliability sensor technology for long-term, maintenance-free operation
- Excellent tolerance to overpressure and vibration reduces field failures
- Water resistant housing - IP65/NEMA 4 housing allows for mounting in wash-down locations
- Circuit protection avoids damage due to incorrect input wiring
- Duct enclosure
- NIST certified (8-point calibration)
- Uni-directional or bi-directional, DIP switch selectable modes
- Pushbutton auto-zero and digital input (2-position terminal block)
- For indoor or outdoor use
Specifications
| Item Number | PX3DXN01S |
| Brand | Veris |
| Application Zone | Plant Room |
| Application | Duct Pressure Monitoring | Filter Monitoring | Fan Monitoring | VAV Control | Air Velocity Monitoring |
| Bluetooth Communication | No |
| Brand | Veris |
| Burst Pressure | 5 psid (34 500 Pa) |
| Calibration Certificate | NIST Certificate |
| Dimension Depth | 1.6" (42 mm) |
| Dimension Height | 4.4" (112 mm) |
| Dimension Probe Diameter | 0.3" (7 mm) |
| Dimension Probe Length | 7.4" (188 mm) |
| Dimension Weight | 4.4 oz (125 g) |
| Dimension Width | 3.5" (88 mm) |
| Display Type | None |
| Electrical Wiring Size | AWG 22 (35 mm²) |
| Electrical Wiring | 3-wires |
| Enclosure Material | ABS Plastic |
| Fitting Material | Brass |
| Fitting Size | 0.24" (6 mm) |
| Fitting Type | Male |
| IP Protection | IP65 (NEMA 4) |
| LED Indicator Type | RGB |
| Measurement Type | Differential Pressure |
| Medium | Air | Gas |
| Model | PX3DXN01 |
| Model | PX3DXN01S |
| Mounting | Duct |
| Operating Temperature | -4 - 140 °F (-20 - 60 °C) |
| Output Specifications | 4 - 20 mA | 0 - 5 V | 0 - 10 V |
| Outputs | Analog output |
| Pressure Measurement Accuracy | ±1% of F.S. |
| Pressure Measurement Range | 0.1"WC (25 Pa) | 0.25"WC (50 Pa) | 0.5"WC (100 Pa) | 1"WC (250 Pa) |
| Product Certification | CE |
| Product Type | Sensor |
| Range | PX3 |
| Standards EMC | EN 61000-6-3 | Class B | EN 61000-6-1 | EN61326-1 | EN61326-2-3 |
| Supply Voltage AC Nominal | 24 VAC |
| Supply Voltage DC Range | 12 - 30 VDC |
| Warranty | 5 years |
