PX3DLX02S | Pressure,Dry,Duct,LCD,1-10 InWC | Veris

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to PX3DLX02S

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris PX3DLX02S Documents

CE Declaration Datasheet Installation Guide User Guide More Info

Overview

Details for PX3DLX02S

Description

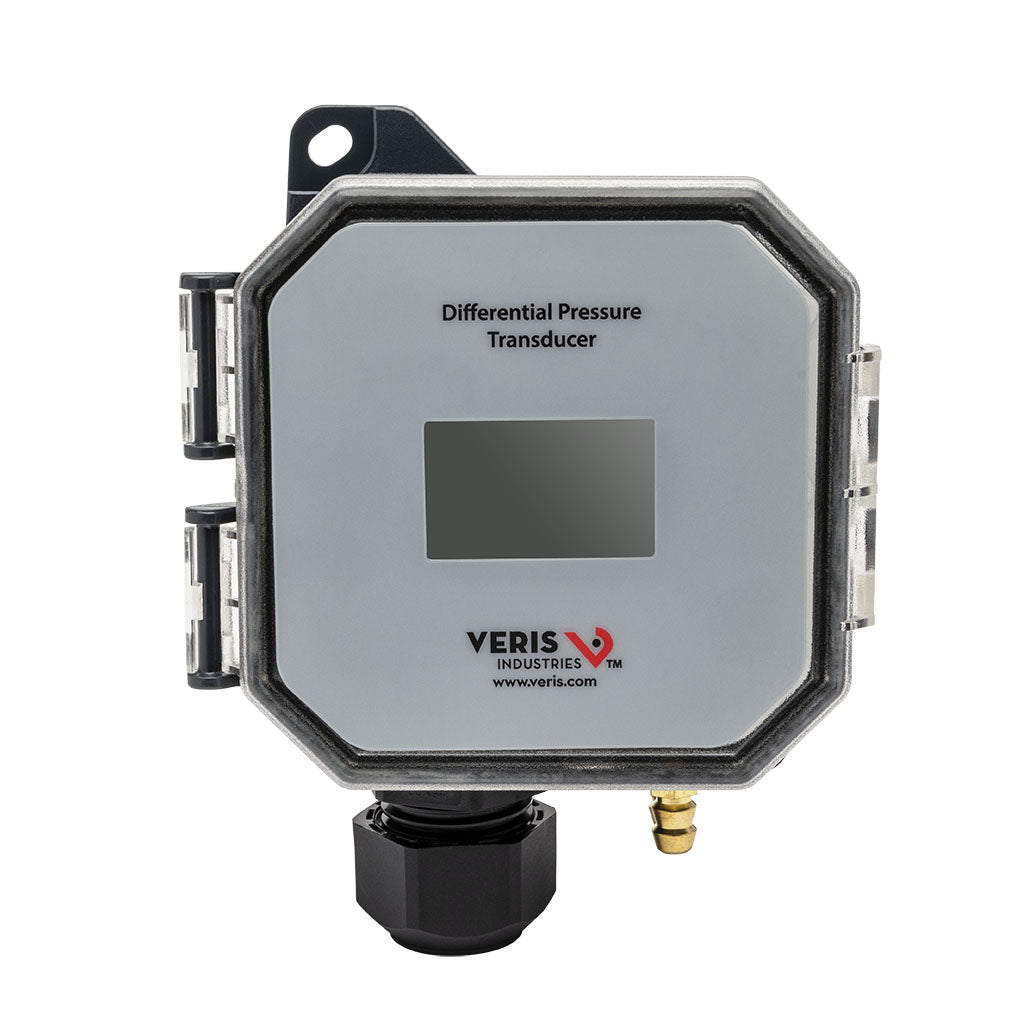

The PX3 transducer can measure either air pressure or velocity with the flip of a switch. The PX3 is available in three installation configurations: duct, panel or universal. Duct and panel models have two pressure and velocity options: 0-1 in. WC / 0-3,000 ft/min or 1-10 in. WC / 3,000-6,000 ft/min with four field-selectable subranges. The universal model comes in one pressure/velocity range: 0-10 in. WC / 0-7,000 ft/min with seven field-selectable sub-ranges for pressure and eight for velocity. All variants are available with and without display. The PX3 has an IP65/NEMA 4 environmental rating and a 5-year limited warranty

Specifications

Item Number	PX3DLX02S
Brand	Veris
Application Zone	Plant Room
Application	Duct Pressure Monitoring \| Filter Monitoring \| Fan Monitoring \| VAV Control \| Air Velocity Monitoring
Brand	Veris
Burst Pressure	5 psid (34 500 Pa)
Calibration Certificate	No
Dimension Depth	1.6" (42 mm)
Dimension Height	4.4" (112 mm)
Dimension Probe Diameter	0.3" (7 mm)
Dimension Probe Length	7.4" (188 mm)
Dimension Weight	4.4 oz (125 g)
Dimension Width	3.5" (88 mm)
Display Precision	0.001
Display Size	0.7" x 1.1" (17 mm x 28 mm)
Display Type	LCD
Electrical Wiring Size	AWG 22 (35 mm²)
Electrical Wiring	3-wires
Enclosure Material	ABS Plastic
Fitting Material	Brass
Fitting Size	0.24" (6 mm)
Fitting Type	Male
IP Protection	IP65 (NEMA 4)
LED Indicator Type	RGB
Measurement Type	Differential Pressure
Medium	Air \| Gas
Model	PX3DLX02
Mounting	Duct
Operating Temperature	-4 - 140 °F (-20 - 60 °C)
Output Specifications	4 - 20 mA \| 0 - 5 V \| 0 - 10 V
Outputs	Analog output
Pressure Measurement Accuracy	±1% of F.S.
Pressure Measurement Range	1"WC (250 Pa) \| 2.5"WC (500 Pa) \| 5"WC (1000 Pa) \| 10"WC (2500 Pa)
Product Certification	CE
Product Type	Sensor
Range	PX3
Standards EMC	EN 61000-6-3 \| Class B \| EN 61000-6-1 \| EN61326-1 \| EN61326-2-3
Supply Voltage AC Nominal	24 VAC
Supply Voltage DC Range	12 - 30 VDC
Warranty	5 years
