PX3DLN02S | Pressure,Dry,Duct,LCD,NIST,1-10 InWC | Veris

Duct Enclosure Dry Media Differential Pressure/Air Velocity Transducer with LCD Display, NIST 8-Point, 1 to 10 in-WG

Brand: VerisSKU: PX3DLN02S

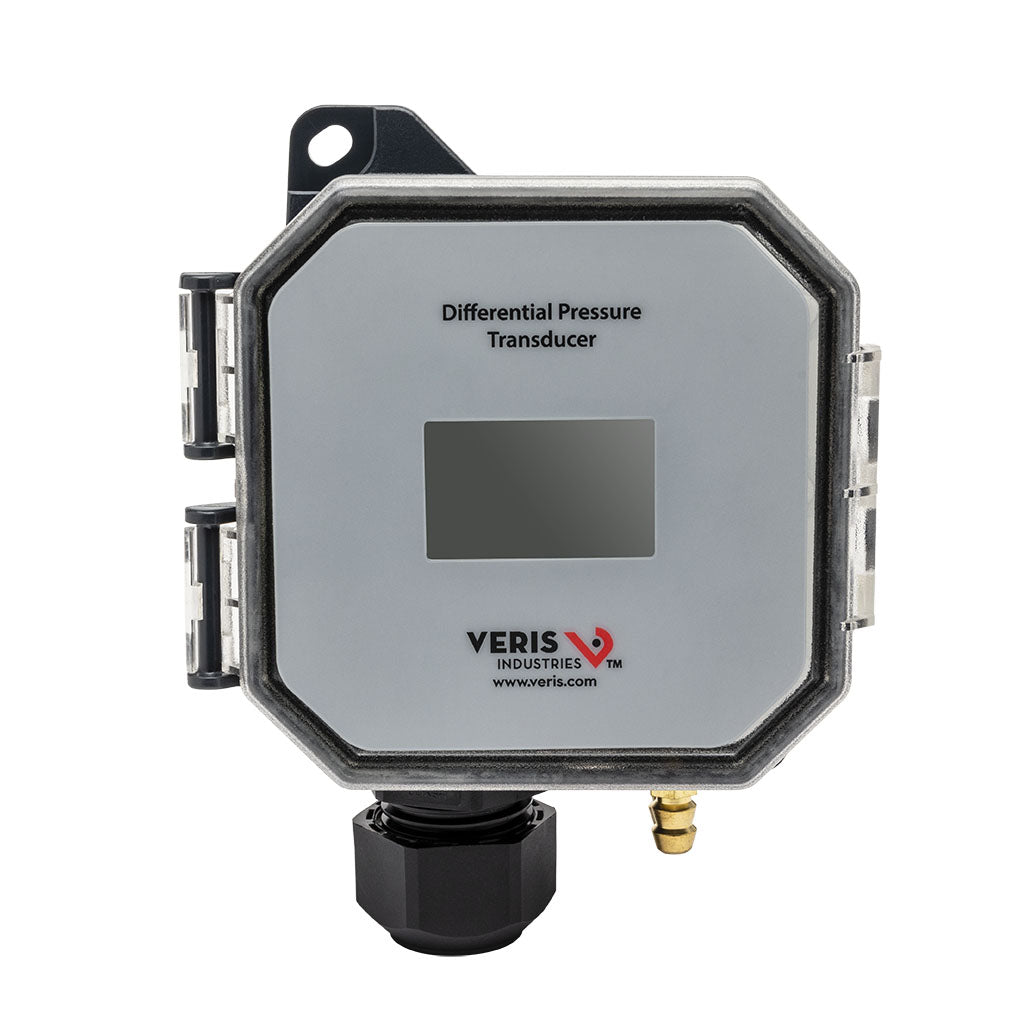

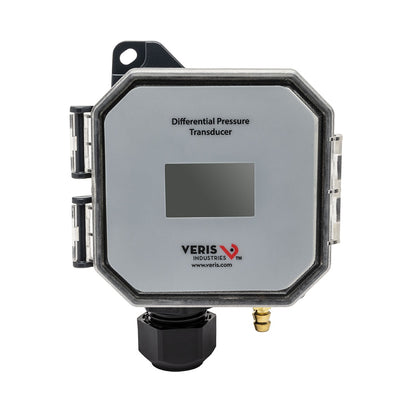

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to PX3DLN02S

Jump to: Overview & Specifications Reviews

Overview Details for PX3DLN02S

The PX3 transducer can measure either air pressure or velocity with the flip of a switch. The PX3DLN02S is a non-bluetooth Duct models has pressure and velocity of 1 to 10 in-WG/3000 to 6000 ft/min with four field-selectable subranges. The PX3 has an IP65/NEMA 4 environmental rating and a 5 years limited warranty.

LCD Screen
High reliability sensor technology for long-term, maintenance-free operation
Excellent tolerance to overpressure and vibration reduces field failures
Water resistant housing - IP65/NEMA 4 housing allows for mounting in wash-down locations
Circuit protection avoids damage due to incorrect input wiring
Duct enclosure
NIST certified (8-point calibration)
Uni-directional or bi-directional, DIP switch selectable modes
Pushbutton auto-zero and digital input (2-position terminal block)
For indoor or outdoor use

For the bluetooth version, see PX3DLN02

Specifications

Item Number	PX3DLN02S
Brand	Veris
Application Zone	Plant Room
Application	Duct Pressure Monitoring \| Filter Monitoring \| Fan Monitoring \| VAV Control \| Air Velocity Monitoring
Bluetooth Communication	No
Brand	Veris
Burst Pressure	5 psid (34 500 Pa)
Calibration Certificate	NIST Certificate
Dimension Depth	1.6" (42 mm)
Dimension Height	4.4" (112 mm)
Dimension Probe Diameter	0.3" (7 mm)
Dimension Probe Length	7.4" (188 mm)
Dimension Weight	4.4 oz (125 g)
Dimension Width	3.5" (88 mm)
Display Precision	0.001
Display Size	0.7" x 1.1" (17 mm x 28 mm)
Display Type	LCD
Electrical Wiring Size	AWG 22 (35 mm²)
Electrical Wiring	3-wires
Enclosure Material	ABS Plastic
Fitting Material	Brass
Fitting Size	0.24" (6 mm)
Fitting Type	Male
IP Protection	IP65 (NEMA 4)
LED Indicator Type	RGB
Measurement Type	Differential Pressure
Medium	Air \| Gas
Model	PX3DLN02
Model	PX3DLN02S
Mounting	Duct
Operating Temperature	-4 - 140 °F (-20 - 60 °C)
Output Specifications	4 - 20 mA \| 0 - 5 V \| 0 - 10 V
Outputs	Analog output
Pressure Measurement Accuracy	±1% of F.S.
Pressure Measurement Range	1"WC (250 Pa) \| 2.5"WC (500 Pa) \| 5"WC (1000 Pa) \| 10"WC (2500 Pa)
Product Certification	CE
Product Type	Sensor
Range	PX3
Standards EMC	EN 61000-6-3 \| Class B \| EN 61000-6-1 \| EN61326-1 \| EN61326-2-3
Supply Voltage AC Nominal	24 VAC
Supply Voltage DC Range	12 - 30 VDC
Warranty	5 years
