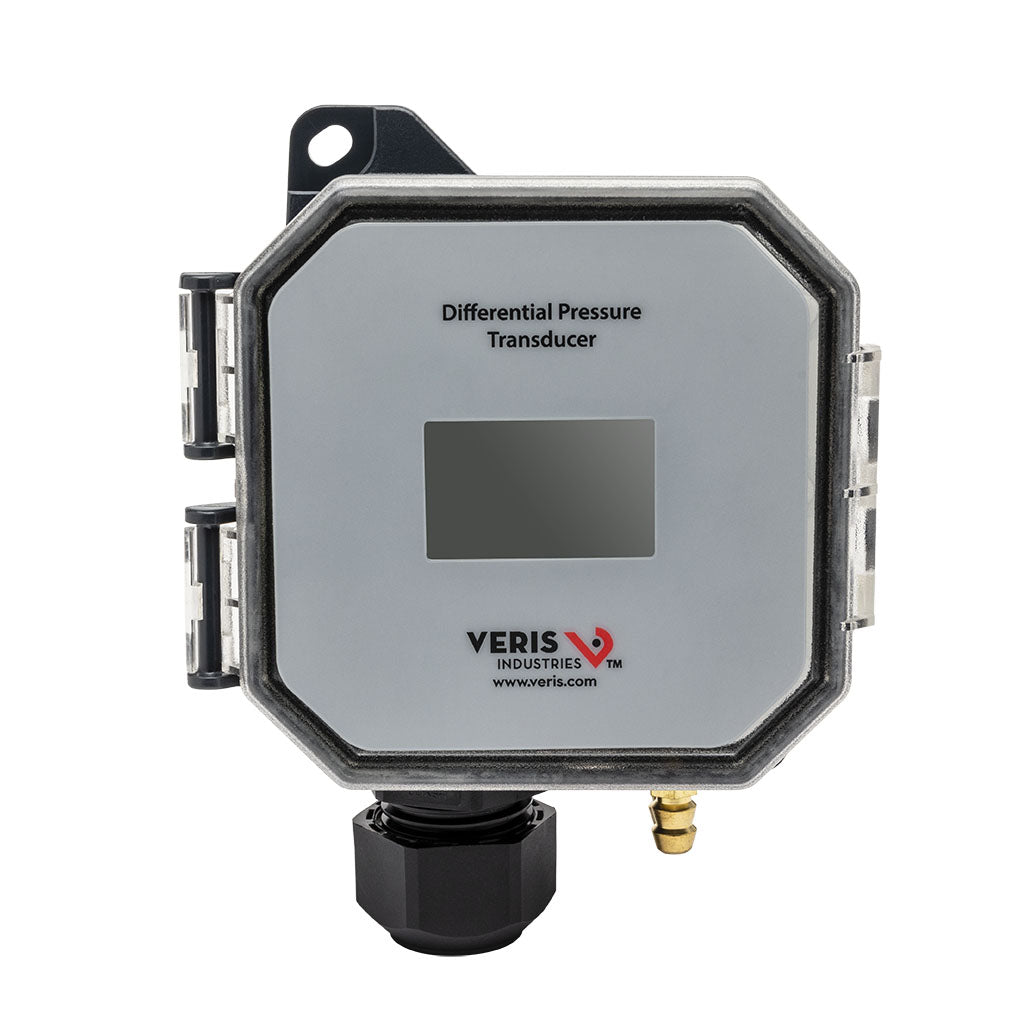

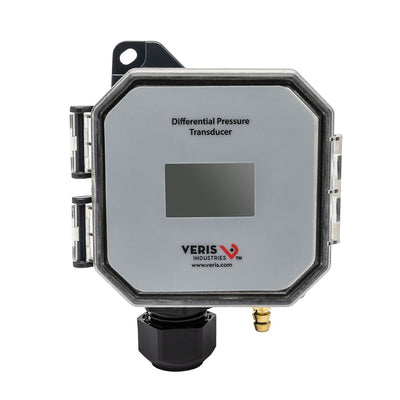

PX3DLN01S | Pressure,Dry,Duct,LCD,NIST,0-1 InWC | Veris
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to PX3DLN01S
Documents and manuals
Veris PX3DLN01S Documents
Overview
Details for PX3DLN01S
Specifications
Item Number | PX3DLN01S |
Brand | Veris |
Application Zone | Plant Room |
Application | Duct Pressure Monitoring | Filter Monitoring | Fan Monitoring | VAV Control | Air Velocity Monitoring |
Brand | Veris |
Burst Pressure | 5 psid (34 500 Pa) |
Calibration Certificate | NIST Certificate |
Dimension Depth | 1.6" (42 mm) |
Dimension Height | 4.4" (112 mm) |
Dimension Probe Diameter | 0.3" (7 mm) |
Dimension Probe Length | 7.4" (188 mm) |
Dimension Weight | 4.4 oz (125 g) |
Dimension Width | 3.5" (88 mm) |
Display Precision | 0.001 |
Display Size | 0.7" x 1.1" (17 mm x 28 mm) |
Display Type | LCD |
Electrical Wiring Size | AWG 22 (35 mm²) |
Electrical Wiring | 3-wires |
Enclosure Material | ABS Plastic |
Fitting Material | Brass |
Fitting Size | 0.24" (6 mm) |
Fitting Type | Male |
IP Protection | IP65 (NEMA 4) |
LED Indicator Type | RGB |
Measurement Type | Differential Pressure |
Medium | Air | Gas |
Model | PX3DLN01 |
Mounting | Duct |
Operating Temperature | -4 - 140 °F (-20 - 60 °C) |
Output Specifications | 4 - 20 mA | 0 - 5 V | 0 - 10 V |
Outputs | Analog output |
Pressure Measurement Accuracy | ±1% of F.S. |
Pressure Measurement Range | 0.1"WC (25 Pa) | 0.25"WC (50 Pa) | 0.5"WC (100 Pa) | 1"WC (250 Pa) |
Product Certification | CE |
Product Type | Sensor |
Range | PX3 |
Standards EMC | EN 61000-6-3 | Class B | EN 61000-6-1 | EN61326-1 | EN61326-2-3 |
Supply Voltage AC Nominal | 24 VAC |
Supply Voltage DC Range | 12 - 30 VDC |
Warranty | 5 years |
