PWXN03S | Pressure | Wet | NEMA 4 | NIST | 0-50PSID | Veris

12 to 30 VDC/24 VAC Input 4 to 20 mA/0 to 5 V/0 to 10 V Output Wet Media Differential Pressure Transducer, 0 to 50 psig, NIST

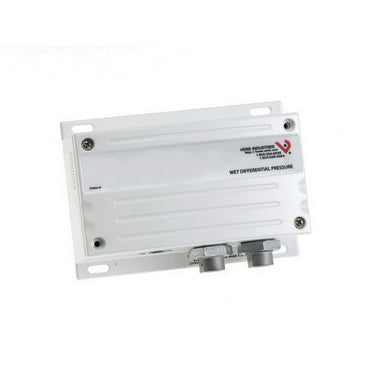

Veris | PWXN03S
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to PWXN03S

Documents and manuals

Overview

Details for PWXN03S

Pressure | Wet | NEMA 4 | NIST | 0-50PSID

The PW series wet pressure transducers incorporate microprocessor profiled sensors for exceptional accuracy and reliability. Easy to use and designed to provide exceptional installation savings, the PW Series is ideal for measuring pressure across pumps, filters, heat exchangers, compressors and other non-corrosive wet media applications. The jumper-selectable port swap feature eliminates costly replumbing when the high and low ports are improperly plumbed, allowing the jumper position to be changed from normal to swap.

  • The jumper-selectable output switch for normal (4 to 20 mA) or reverse (20 to 4 mA) operation provides application flexibility
  • Rugged, die-cast enclosure provides NEMA 4 sealing
  • Switch-selectable pressure ranges, fewer models to order and stock
  • Pushbutton and remote zero adjustment, maintain accuracy and reduce callbacks with automatic zero calibration
  • Jumper-controlled electronic surge dampening for high stability
  • NIST certified
  • Electronic, 5 s averaging surge damping
  • Overrides output to full scale (20 mA, 5 V, 10 V) test mode
  • Pushbutton auto-zero and digital input (2-position terminal block) zero adjust
  • Dual-color LED: green = normal, green blinking = low greater than high, red = over range, red blinking = overpressure status indication
  • Media compatible with 17 to 4 PH stainless steel
  • Maximum 2x full scale range proof pressure
  • Maximum 5x full scale range burst pressure


Optional Accessories: AA14A, AA11, AA12, AA13

Specifications

Item Number PWXN03S
Brand Veris
Application Zone Plant Room
Application Pump and Compressor Differential Pressure | Chiller Differential Pressure Monitoring
Brand Veris
Burst Pressure 250 psi (17 bar)
Calibration Certificate NIST Certificate
Dimension Depth 2.2" (56 mm)
Dimension Height 4" (102 mm)
Dimension Width 5.8" (147 mm)
Direction Unidirectional
Display Type None
Electrical Wiring 3-wires
Enclosure Material Powder Coated Aluminium
Fitting Material Stainless Steel
Fitting Size 1/ 8” NPT
Fitting Type Female
IP Protection IP65 (NEMA 4)
LED Indicator Type Red and Green
Measurement Type Differential Pressure
Medium Water
Model PWXN03S
Mounting Panel
Operating Current 125 - 280 mA
Operating Humidity 0 - 90% RH; non-condensing
Operating Temperature 14 - 122 °F (-10 - 50 °C)
Output Specifications 4 - 20 mA | 0 - 5 V | 0 - 10 V
Outputs Analog output
Pressure Measurement Accuracy Range A and B: ±1% of F.S. Range C: ±1.5% of F.S. Range D: ±2% of F.S.
Pressure Measurement Range 0 - 5 psi (0 - 0.3 bar) | 0 - 10 psi (0 - 0.7 bar) | 0 - 25 psi (0 - 1.7 bar) | 0 - 50 psi (0 - 3.5 bar)
Pressure Range 0-50 psid
Pressure Sensor Type Differential (wet to wet)
Product Certification CE
Product Type Sensor
Range PW
Sensor Pressure
Standards EMC EN 61000-6-1
Supply Voltage AC Nominal 24 VAC
Supply Voltage DC Range 15 - 30 VDC
Warranty 5 years
