PWRLX04S020 | 15 to 30 VDC/24 VAC Input 4 to 20 mA/0 to 5 V/0 to 10 V Output Wet Water Media Differential Pressure Remote Transducer with 20 ft Standard Cable, 0 to 100 psig | Veris
15 to 30 VDC/24 VAC Input 4 to 20 mA/0 to 5 V/0 to 10 V Output Wet Water Media Differential Pressure Remote Transducer with 20 ft Standard Cable, 0 to 100 psig

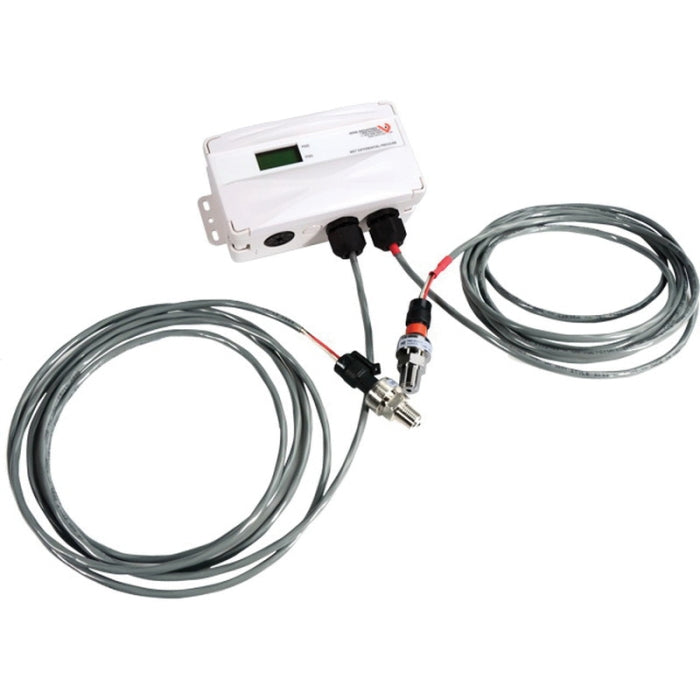

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to PWRLX04S020
Overview Details for PWRLX04S020
The PWR series remote wet media pressure transducers allow remote pressure sensing capability using existing plumbing runs. With no need to run plumbing lines all the way to the transducer, the installation time and cost is greatly reduced.
- Remote probes reduce need for plumbing or bypass assemblies, lower costs and reduced labor for installation
- Pushbutton zero calibration - no trim pots to adjust, maintain accuracy and prevent callbacks with automatic zero calibration and digital input (2-position terminal block)
- Switch-selectable pressure ranges, fewer models to order and stock
- 3-wire transmitter output
- User-selectable output
- 2 times of maximum full scale range proof pressure
- 5 times of maximum full scale range burst pressure
Optional Accessories: AA68, AA72
Specifications
| Item Number | PWRLX04S020 |
| Brand | Veris |
| Application Zone | Plant Room |
| Application | Pump and Compressor Differential Pressure | Chiller Differential Pressure Monitoring |
| Brand | Veris |
| Burst Pressure | 500 psi (34 bar) |
| Calibration Certificate | No |
| Dimension Depth | 2.4" (61 mm) |
| Dimension Height | 3.1" (78 mm) |
| Dimension Probe Length | 20' (6.1 m) |
| Dimension Width | 6.7" (170 mm) |
| Direction | Unidirectional |
| Display Size | 0.6" x 1.2" (16 mm x 32 mm) |
| Display Type | None |
| Electrical Wiring | 3-wires |
| Enclosure Material | Plastic |
| Fitting Material | Stainless Steel |
| Fitting Size | 1/4" NPT |
| Fitting Type | Male |
| IP Protection | IP65 (NEMA 4) |
| LED Indicator Type | Red and Green |
| Measurement Type | Differential Pressure |
| Medium | Water |
| Model | PWRLX04S020 |
| Mounting | Panel | Remote Panel |
| Operating Current | 125 - 280 mA |
| Operating Humidity | 10 - 90% RH; non-condensing |
| Operating Temperature | 14 - 122 °F (-10 - 50 °C) |
| Output Specifications | 4 - 20 mA | 0 - 5 V | 0 - 10 V |
| Outputs | Analog output |
| Pressure Measurement Accuracy | Range A and B: ±1% of F.S. Range C: ±1.5% of F.S. Range D: ±2% of F.S. |
| Pressure Measurement Range | 0 - 10 psi (0 - 0.7 bar) | 0 - 20 psi (0 - 1.4 bar) | 0 - 50 psi (0 - 3.5 bar) | 0 - 100 psi (0 - 7 bar) |
| Pressure Range | 0-100 psid |
| Pressure Sensor Type | Differential (wet to wet) |
| Pressure Sensor w LCD | Yes |
| Product Certification | CE |
| Product Type | Sensor |
| Range | PWR |
| Sensor | Pressure |
| Standards EMC | EN 61000-6-1 |
| Supply Voltage AC Nominal | 24 VAC |
| Supply Voltage DC Range | 15 - 30 VDC |
| Warranty | 5 years |
