PWRLX04S006A | Pressure | Wet | Remote | LCD | 0-100PSID | 6ft | Armored Cable | Veris

15 to 30 VDC/24 VAC Input 4 to 20 mA/0 to 5 V/0 to 10 V Output Wet Media Differential Pressure Remote Transducer with 6 ft Armored Cable, 0 to 100 psig

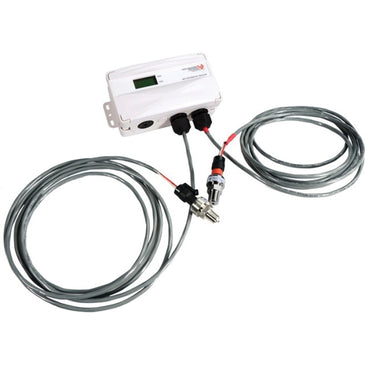

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to PWRLX04S006A

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris PWRLX04S006A Documents

CE Declaration Datasheet Engineering Specs Installation guide More Info

Overview

Details for PWRLX04S006A

Pressure | Wet | Remote | LCD | 0-100PSID | 6ft | Armored Cable

The PWR Series remote wet media pressure transducers allow remote pressure sensing capability using existing plumbing runs. With no need to run plumbing lines all the way to the transducer, the installation time and cost is greatly reduced. Select either armored (6 ft.) or shielded (10 or 20 ft.) cable, depending on the application.

Specifications

Item Number	PWRLX04S006A
Brand	Veris
Application Zone	Plant Room
Application	Pump and Compressor Differential Pressure \| Chiller Differential Pressure Monitoring
Brand	Veris
Burst Pressure	500 psi (34 bar)
Calibration Certificate	No
Dimension Depth	2.4" (61 mm)
Dimension Height	3.1" (78 mm)
Dimension Probe Length	6' (1.8 m)
Dimension Width	6.7" (170 mm)
Direction	Unidirectional
Display Size	0.6" x 1.2" (16 mm x 32 mm)
Display Type	None
Electrical Wiring	3-wires
Enclosure Material	Plastic
Fitting Material	Stainless Steel
Fitting Size	1/4" NPT
Fitting Type	Male
IP Protection	IP65 (NEMA 4)
LED Indicator Type	Red and Green
Measurement Type	Differential Pressure
Medium	Water
Model	PWRLX04S006A
Mounting	Panel \| Remote Panel
Operating Current	125 - 280 mA
Operating Humidity	10 - 90% RH; non-condensing
Operating Temperature	14 - 122 °F (-10 - 50 °C)
Output Specifications	4 - 20 mA \| 0 - 5 V \| 0 - 10 V
Outputs	Analog output
Pressure Measurement Accuracy	Range A and B: ±1% of F.S. Range C: ±1.5% of F.S. Range D: ±2% of F.S.
Pressure Measurement Range	0 - 10 psi (0 - 0.7 bar) \| 0 - 20 psi (0 - 1.4 bar) \| 0 - 50 psi (0 - 3.5 bar) \| 0 - 100 psi (0 - 7 bar)
Pressure Range	0-100 psid
Pressure Sensor Type	Differential (wet to wet)
Pressure Sensor w LCD	Yes
Product Certification	CE
Product Type	Sensor
Range	PWR
Sensor	Pressure
Standards EMC	EN 61000-6-1
Supply Voltage AC Nominal	24 VAC
Supply Voltage DC Range	15 - 30 VDC
Warranty	5 years
