PWLX04BP | Pressure | Wet | NEMA 4 | LCD | 0-100PSID | Veris
12 to 30 VDC/24 VAC Input 4 to 20 mA/0 to 5 V/0 to 10 V Output Wet Media Differential Pressure Transducer with LCD Display, 0 to 100 paig, Bypass Assembly

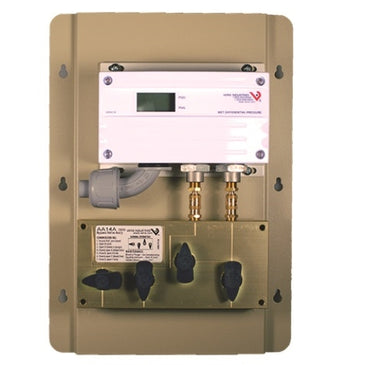

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to PWLX04BP
Documents and manuals
Veris PWLX04BP Documents
Overview
Details for PWLX04BP
Pressure | Wet | NEMA 4 | LCD | 0-100PSID
The PW Series wet pressure transducers incorporate microprocessor profiled sensors for exceptional accuracy and reliability. Easy to use and designed to provide exceptional installation savings, the PW Series is ideal for measuring pressure across pumps, filters, heat exchangers, compressors, and other non-corrosive wet media applications.Specifications
Item Number | PWLX04BP |
Brand | Veris |
Application Zone | Plant Room |
Application | Pump and Compressor Differential Pressure | Chiller Differential Pressure Monitoring |
Brand | Veris |
Burst Pressure | 500 psi (34 bar) |
Calibration Certificate | No |
Dimension Depth | 2.6" (67 mm) |
Dimension Height | 12" (305 mm) |
Dimension Width | 8.7" (221 mm) |
Display Size | 0.7" x 1.4" (17 mm x 36 mm) |
Display Type | LCD |
Electrical Wiring | 3-wires |
Enclosure Material | Powder Coated Aluminium |
Fitting Material | Stainless Steel |
Fitting Size | 1/ 8” NPT |
Fitting Type | Female |
IP Protection | IP65 (NEMA 4) |
Measurement Type | Differential Pressure |
Medium | Water |
Model | PWLX04BP |
Mounting | Panel |
Operating Current | 125 - 280 mA |
Operating Humidity | 0 - 90% RH; non-condensing |
Operating Temperature | 14 - 122 °F (-10 - 50 °C) |
Output Specifications | 4 - 20 mA | 0 - 5 V | 0 - 10 V |
Outputs | Analog output |
Pressure Measurement Accuracy | Range A and B: ±1% of F.S. Range C: ±1.5% of F.S. Range D: ±2% of F.S. |
Pressure Measurement Range | 0 - 10 psi (0 - 0.7 bar) | 0 - 20 psi (0 - 1.4 bar) | 0 - 50 psi (0 - 3.5 bar) | 0 - 100 psi (0 - 7 bar) |
Product Certification | CE |
Product Type | Sensor |
Range | PW |
Standards EMC | EN 61000-6-1 |
Supply Voltage AC Nominal | 24 VAC |
Supply Voltage DC Range | 15 - 30 VDC |
Warranty | 5 years |
