PWLN05S | Pressure | Wet | NEMA 4 | LCD | 0-250PSID | NIST | Veris

12 to 30 VDC/24 VAC Input 4 to 20 mA/0 to 5 V/0 to 10 V Output Wet Media Differential Pressure Transducer with LCD Display, 0 to 250 psig, NIST

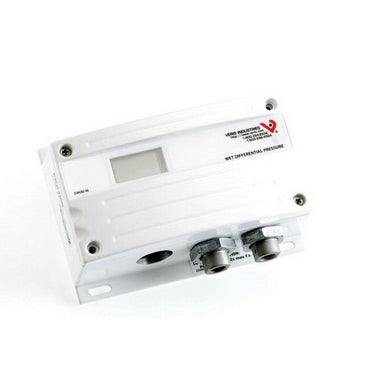

Veris | PWLN05S
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to PWLN05S

Documents and manuals

Overview

Details for PWLN05S

Pressure | Wet | NEMA 4 | LCD | 0-250PSID | NIST

Description

The PW Series wet pressure transducers incorporate microprocessor profiled sensors for exceptional accuracy and reliability. Easy to use and designed to provide exceptional installation savings, the PW Series is ideal for measuring pressure across pumps, filters, heat exchangers, compressors, and other non-corrosive wet media applications.

APPLICATIONS

  • Monitoring and controlling pump differential pressure
  • Chiller/boiler differential pressure drop
  • CW/HW system differential pressure

Specifications

Item Number PWLN05S
Brand Veris
Application Zone Plant Room
Application Pump and Compressor Differential Pressure | Chiller Differential Pressure Monitoring
Brand Veris
Burst Pressure 1;250 psi (85 bar)
Calibration Certificate NIST Certificate
Dimension Depth 2.2" (56 mm)
Dimension Height 4" (102 mm)
Dimension Width 5.8" (147 mm)
Direction Unidirectional
Display Size 0.7" x 1.4" (17 mm x 36 mm)
Display Type LCD
Electrical Wiring 3-wires
Enclosure Material Powder Coated Aluminium
Fitting Material Stainless Steel
Fitting Size 1/ 8” NPT
Fitting Type Female
IP Protection IP65 (NEMA 4)
LED Indicator Type Red and Green
Measurement Type Differential Pressure
Medium Water
Model PWLN05S
Mounting Panel
Operating Current 125 - 280 mA
Operating Humidity 0 - 90% RH; non-condensing
Operating Temperature 14 - 122 °F (-10 - 50 °C)
Output Specifications 4 - 20 mA | 0 - 5 V | 0 - 10 V
Outputs Analog output
Pressure Measurement Accuracy Range A and B: ±1% of F.S. Range C: ±1.5% of F.S. Range D: ±2% of F.S.
Pressure Measurement Range 0 - 25 psi (0 - 1.7 bar) | 0 - 50 psi (0 - 3.5 bar) | 0 - 100 psi (0 - 7 bar) | 0 - 250 psi (0 - 17 bar)
Pressure Range 0-250 psid
Pressure Sensor Type Differential (wet to wet)
Pressure Sensor w LCD Yes
Product Certification CE
Product Type Sensor
Range PW
Sensor Pressure
Standards EMC EN 61000-6-1
Supply Voltage AC Nominal 24 VAC
Supply Voltage DC Range 15 - 30 VDC
Warranty 5 years
