PW2XN04BP | Pressure | Wet | NEMA 4 | NIST | 0-100PSID | Veris
12 to 24 VDC Input 4 to 20 mA Output Wet Media Differential Pressure Transducer, 0 to 100 psig, NIST, Bypass Assembly

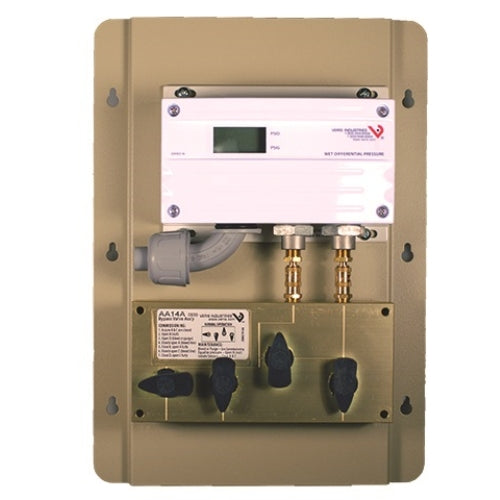

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to PW2XN04BP
Documents and manuals
Veris PW2XN04BP Documents
Overview
Details for PW2XN04BP
Pressure | Wet | NEMA 4 | NIST | 0-100PSID
Description
The PW2 Series 2-wire, 4 to 20 mA wet pressure transducers incorporate microprocessor profiled sensors for exceptional accuracy and reliability. Easy to use and designed to provide exceptional installation savings, the PW2 Series is ideal for measuring pressure across pumps, filters, heat exchangers, compressors, and other non-corrosive wet media applications. The optional pre-assembled bypass valve is designed for easy maintenance and a one-step installation.
Specifications
Item Number | PW2XN04BP |
Brand | Veris |
Application Zone | Plant Room |
Application | Pump and Compressor Differential Pressure | Chiller Differential Pressure Monitoring |
Brand | Veris |
Burst Pressure | 500 psi (34 bar) |
Calibration Certificate | NIST Certificate |
Dimension Depth | 2.6" (67 mm) |
Dimension Height | 12" (305 mm) |
Dimension Width | 8.7" (221 mm) |
Display Type | None |
Electrical Wiring | 2-wires (loop-powered) |
Enclosure Material | Powder Coated Aluminium |
Fitting Material | Stainless Steel |
Fitting Size | 1/ 8” NPT |
Fitting Type | Female |
IP Protection | IP65 (NEMA 4) |
Measurement Type | Differential Pressure |
Medium | Water |
Model | PW2XN04BP |
Mounting | Panel |
Operating Current | 29 mA |
Operating Humidity | 0 - 90% RH; non-condensing |
Operating Temperature | -4 - 130 °F (-10 - 55 °C) |
Output Specifications | 4 - 20 mA |
Outputs | Analog output |
Pressure Measurement Accuracy | Range A; B and C: ±1% of F.S. Range D: ±2% of F.S. |
Pressure Measurement Range | 0 - 10 psi (0 - 0.7 bar) | 0 - 20 psi (0 - 1.4 bar) | 0 - 50 psi (0 - 3.5 bar) | 0 - 100 psi (0 - 7 bar) |
Product Certification | CE |
Product Type | Sensor |
Range | PW2 |
Standards EMC | EN 61000-6-1 |
Supply Voltage DC Range | 12 - 24 VDC |
Warranty | 5 years |
