PW2LN03S | Pressure | Wet | 2 | Nema 4 | LCD | NIST | 0-50PSID | Veris

12 to 24 VDC Input 4 to 20 mA Output Wet Media Differential Pressure Transducer with LCD Display, 0 to 50 psig, NIST

Brand: VerisSKU: PW2LN03S

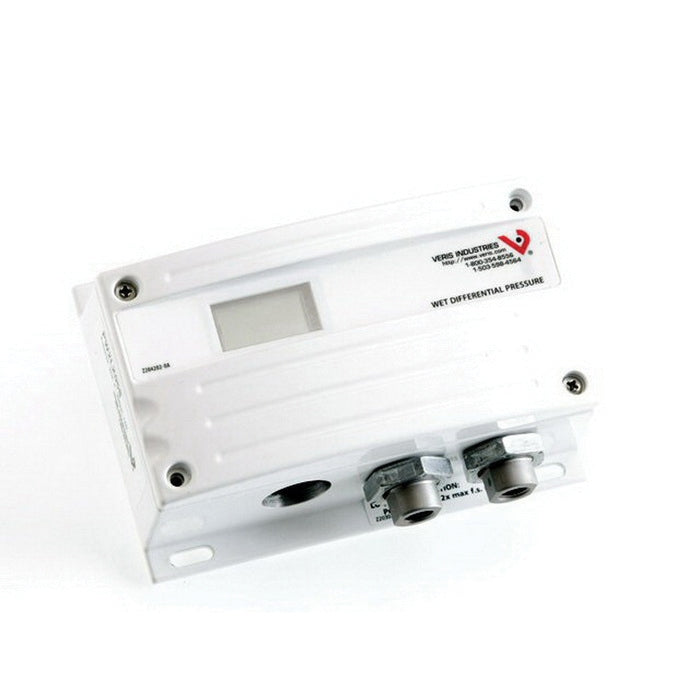

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to PW2LN03S

Jump to: Overview & Specifications Reviews

Overview Details for PW2LN03S

The PW2LN03S 2-wire, 4 to 20 mA wet pressure transducers incorporate microprocessor profiled sensors for exceptional accuracy and reliability. Easy to use and designed to provide exceptional installation savings, the PW2 series is ideal for measuring pressure across pumps, filters, heat exchangers, compressors and other non-corrosive wet media applications.

LCD Display
Operational Range: 0-50 psig
Application Flexibility: The jumper-selectable output switch for normal (4 to 20 mA) or reverse (20 to 4 mA) operation
Rugged, die-cast enclosure provides NEMA 4 sealing
Selectable differential units: psid or bard
Dual sensor design for improved overpressure tolerance, eliminates the requirement for a bypass valve assembly in most applications
Jumper-controlled electronic surge dampening for high stability
Pushbutton zero calibration - no trim pots to adjust, maintain accuracy and reduce callbacks with automatic zero calibration
2-wire transmitter output
User-selectable output
NIST certified
2 times of maximum full scale range proof pressure
5 times of maximum full scale range burst pressure

Optional Accessories: AA14A, AA11, AA12, AA13

Specifications

Item Number	PW2LN03S
Brand	Veris
Application Zone	Plant Room
Application	Pump and Compressor Differential Pressure \| Chiller Differential Pressure Monitoring
Brand	Veris
Burst Pressure	250 psi (17 bar)
Calibration Certificate	NIST Certificate
Dimension Depth	2.2" (56 mm)
Dimension Height	4" (102 mm)
Dimension Width	5.8" (147 mm)
Direction	Unidirectional
Display Size	0.7" x 1.4" (17 mm x 36 mm)
Display Type	LCD
Electrical Wiring	2-wires (loop-powered)
Enclosure Material	Powder Coated Aluminium
Fitting Material	Stainless Steel
Fitting Size	1/ 8” NPT
Fitting Type	Female
IP Protection	IP65 (NEMA 4)
Measurement Type	Differential Pressure
Medium	Water
Model	PW2LN03S
Mounting	Panel
Operating Current	29 mA
Operating Humidity	0 - 90% RH; non-condensing
Operating Temperature	14 - 130 °F (-10 - 55 °C)
Output Specifications	4 - 20 mA
Outputs	Analog output
Pressure Measurement Accuracy	Range A; B and C: ±1% of F.S. Range D: ±2% of F.S.
Pressure Measurement Range	0 - 5 psi (0 - 0.3 bar) \| 0 - 10 psi (0 - 0.7 bar) \| 0 - 25 psi (0 - 1.7 bar) \| 0 - 50 psi (0 - 3.5 bar)
Pressure Range	0-50 psid
Pressure Sensor Type	Differential (wet to wet)
Pressure Sensor w LCD	Yes
Product Certification	CE
Product Type	Sensor
Range	PW2
Sensor	Pressure
Standards EMC	EN 61000-6-1
Supply Voltage DC Range	12 - 24 VDC
Warranty	5 years
